Getrag 260/5/50(스포츠)기어세트개별부품 for BMW 3 Series E30 325i (1993)

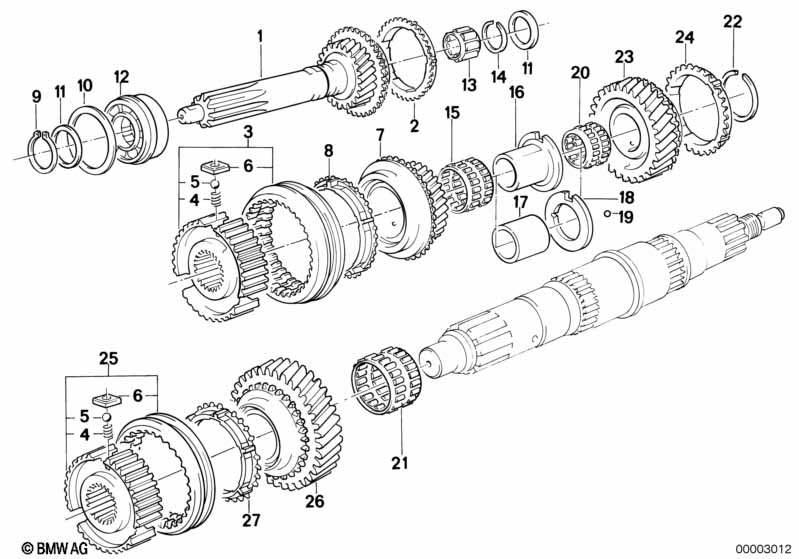

This Getrag 260/5/50(스포츠)기어세트개별부품 technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 구동축 | 1 | 23211228104 | 단종 | Shop at ECS Tuning | |||||
| 02 | 싱크로나이저링 | 1 | 23231228097 | $121.90 | Shop at ECS Tuning | |||||
| 03 | 가이드 슬리브, 3단 기어와 4단 기어 | 1 | 23231224490 | $294.45 | 단종 | Shop at ECS Tuning | ||||
| 04 | 압력 스프링 | 6 | 23231224368 | $6.45 | Shop at ECS Tuning | |||||
| 05 | 볼 | 6 | 23231224365 | $1.02 | Shop at ECS Tuning | |||||
| 06 | 인서트 | 6 | 23231224364 | $2.82 | Shop at ECS Tuning | |||||
| 07 | 시프트 기어, 3단 기어 | 1 | 23221228156 | 단종 | Shop at ECS Tuning | |||||
| 08 | 싱크로나이저링 | 1 | 23231228097 | $121.90 | Shop at ECS Tuning | |||||
| 09 | 스냅 링 | 35X2,00 | 1 | 23211209359 | $2.58 | Shop at ECS Tuning | ||||
| 09 | 스냅 링 | 35X2,10 | 1 | 23211209360 | $2.58 | Shop at ECS Tuning | ||||
| 09 | 스냅 링 | 35X2,20 | 1 | 23211209361 | $2.58 | Shop at ECS Tuning | ||||
| 09 | 스냅 링 | 35X2,30 | 1 | 23211209362 | $2.17 | Shop at ECS Tuning | ||||
| 09 | 스냅 링 | 35X2,40 | 1 | 23221224183 | $2.55 | Shop at ECS Tuning | ||||
| 10 | 스페이서 링 | 80X66X0,3 | 2 | 23221224376 | $9.81 | Shop at ECS Tuning | ||||
| 10 | 스페이서 링 | 80X66X0,4 | 2 | 23221224377 | $4.08 | 단종 | Shop at ECS Tuning | |||
| 10 | 스페이서 링 | 80X66X0,5 | 2 | 23221224378 | $7.02 | Shop at ECS Tuning | ||||
| 11 | 서포트 심 | 35,1X48X3 | 2 | 23231209325 | $8.32 | Shop at ECS Tuning | ||||
| 12 | 볼 베어링 | 80X35X27 | 1 | 23121228095 | $95.11 | 단종 | Shop at ECS Tuning | |||
| 13 | 니들케이지 | 35X23X16 | 1 | 23221207784 | $18.62 | Shop at ECS Tuning | ||||
| 14 | 스냅 링 | 35X2,00 | 1 | 23211209359 | $2.58 | Shop at ECS Tuning | ||||
| 14 | 스냅 링 | 35X2,10 | 1 | 23211209360 | $2.58 | Shop at ECS Tuning | ||||
| 14 | 스냅 링 | 35X2,20 | 1 | 23211209361 | $2.58 | Shop at ECS Tuning | ||||
| 14 | 스냅 링 | 35X2,30 | 1 | 23211209362 | $2.17 | Shop at ECS Tuning | ||||
| 14 | 스냅 링 | 35X2,40 | 1 | 23221224183 | $2.55 | Shop at ECS Tuning | ||||
| 15 | 니들케이지 | 50X45X30 | 1 | 23221224179 | $158.57 | Shop at ECS Tuning | ||||
| 17 | 스페이서 | 1 | 23221224292 | $73.10 | 단종 | Shop at ECS Tuning | ||||
| 18 | 스러스트 와셔 | 1 | 23221224291 | $8.72 | 단종 | Shop at ECS Tuning | ||||
| 19 | 볼 | 1 | 23221224293 | $0.30 | Shop at ECS Tuning | |||||
| 20 | 니들케이지 | 50X45X27 | 1 | 23221224185 | $53.80 | Shop at ECS Tuning | ||||
| 21 | 니들케이지 | 50X55X30 | 1 | 23221224287 | $53.80 | Shop at ECS Tuning | ||||
| 22 | 로크 링 | 52X44X2,00 | 2 | 23221224190 | $3.18 | Shop at ECS Tuning | ||||
| 22 | 로크 링 | 52X44X1,95 | 2 | 23221224191 | $5.25 | Shop at ECS Tuning | ||||
| 22 | 로크 링 | 52X44X1,90 | 2 | 23221224192 | $3.42 | Shop at ECS Tuning | ||||
| 22 | 로크 링 | 52X44X1,85 | 2 | 23221224193 | $3.40 | Shop at ECS Tuning | ||||
| 22 | 로크 링 | 52X44X1,80 | 2 | 23221224194 | $3.40 | Shop at ECS Tuning | ||||
| 23 | 시프트 기어, 2단 기어 | 1 | 23221228100 | 단종 | Shop at ECS Tuning | |||||
| 24 | 싱크로나이저링 | 1 | 23231228097 | $121.90 | Shop at ECS Tuning | |||||
| 25 | 가이드 슬리브, 1단 기어와 2단 기어 | 1 | 23231228223 | $399.03 | 단종 | Shop at ECS Tuning | ||||
| 26 | 시프트 기어, 1단 기어 | 1 | 23221228157 | $393.07 | 단종 | Shop at ECS Tuning | ||||
| 27 | 싱크로나이저링 | 1 | 23231228096 | $121.90 | Shop at ECS Tuning |
주의
- ENDED = 이부품은 단종되었습니다
