Getrag 235,기어 세트 부품/수리세트 for BMW 1502-2002tii 2002tii (1973)

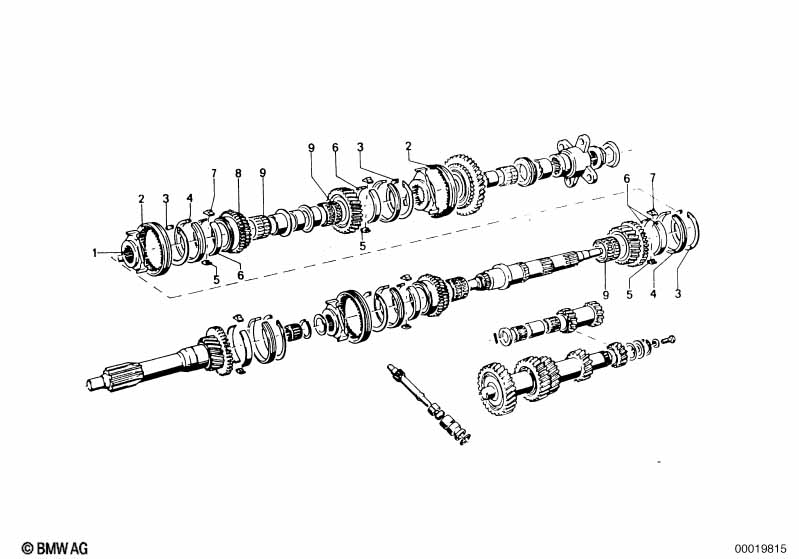

This Getrag 235,기어 세트 부품/수리세트 technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 가이드 슬리브, 2단 기어와 3단 기어 | 1 | 23231200748 | $193.36 | Shop at ECS Tuning | |||||
| 02 | 기어시프트 슬리브 | 2 | 23221200754 | $176.90 | Shop at ECS Tuning | |||||
| 03 | 로크 링 | 3 | 23231200774 | $11.38 | Shop at ECS Tuning | |||||
| 04 | 싱크로나이저링 | 2 | 23231200777 | $101.47 | Shop at ECS Tuning | |||||
| 05 | 스토퍼 | 3 | 23231200771 | $10.90 | Shop at ECS Tuning | |||||
| 06 | 래칫 플레이트 | 6 | 23231200773 | $37.53 | Shop at ECS Tuning | |||||
| 07 | 인서트 | 3 | 23231200772 | $167.55 | Shop at ECS Tuning | |||||
| 08 | 시프트 기어, 2단 기어 | 1 | 23221200775 | $301.32 | Shop at ECS Tuning | |||||
| 09 | 니들케이지 | 42X37X27,5 | 3 | 23221204605 | Shop at ECS Tuning |
