GA8G45AW 오일팬 for BMW MINI F56 JCW

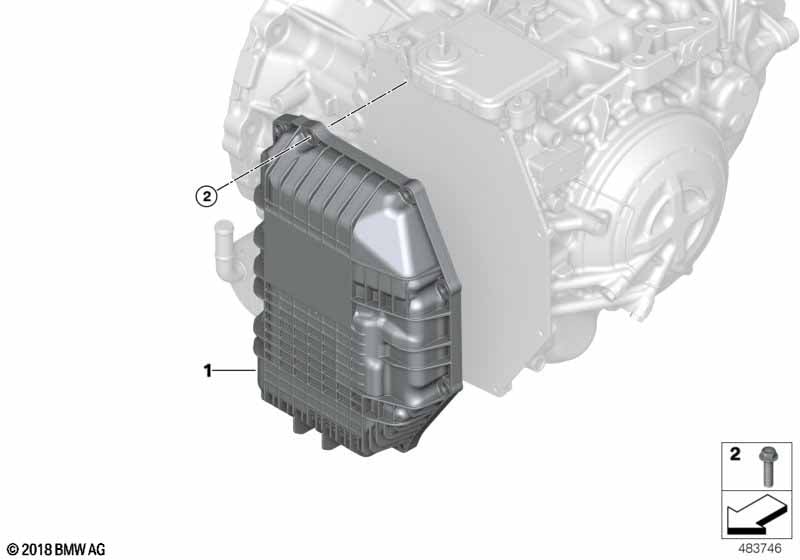

This GA8G45AW 오일팬 technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 오일팬 | GA8G45AW | 1 | 24118699901 | Shop at ECS Tuning | |||||
| 다음과 결합해서만 | ||||||||||
| -- | 육각머리볼트 | M8X15,5 | 13 | 24108627788 | Shop at ECS Tuning | |||||
| 다음이 장착된 자동차용 국가사양,일본 |
L807A=예 |
|||||||||
| 01 | 오일팬 | GA8G45AW | 1 | 24118699901 | Shop at ECS Tuning | |||||
| 다음과 결합해서만 | ||||||||||
| -- | 육각머리볼트 | M6X25 | 10 | 24148699902 | Shop at ECS Tuning | |||||
| 02 | 육각머리볼트 | M6X25 | 10 | 24148699902 | Shop at ECS Tuning | |||||
| 다음과 결합해서만 | ||||||||||
| -- | 육각머리볼트 | M6X25 | 10 | 24148699902 | Shop at ECS Tuning | |||||
