앞차축 서포트,컨트롤암/텐션 스트럿 for BMW 3 Series E92 335i (2010)

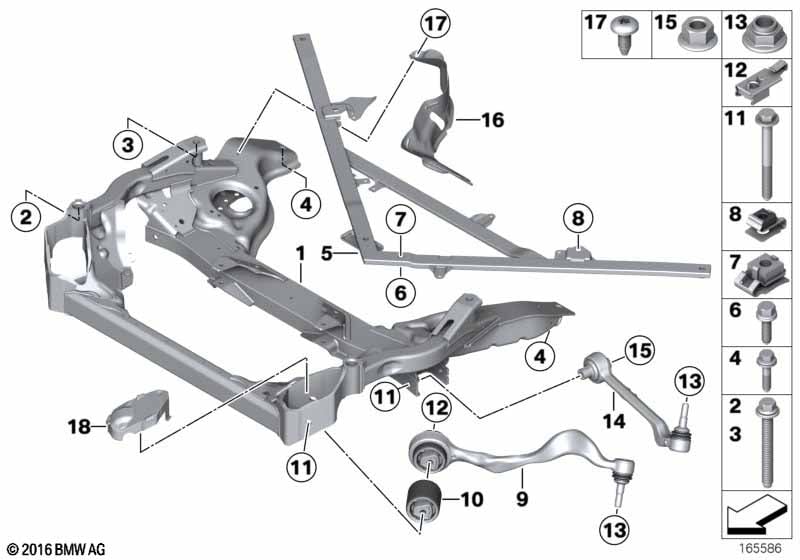

This 앞차축 서포트,컨트롤암/텐션 스트럿 technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 앞차축 서포트 | 1 | 31116785639 | $605.19 | Shop at ECS Tuning | |||||
| 02 | 볼트,와셔 포함 | M12X1,5X90-10.9 | 2 | 31106769907 | $2.75 | Shop at ECS Tuning | ||||
| 03 | 육각머리볼트,플랜지 포함 | M12X1,5X145 | 2 | 31106850312 | Shop at ECS Tuning | |||||
| 04 | 육각머리볼트,플랜지 포함 | M12X1,5X53-10.9 | 2 | 31106767497 | $2.30 | Shop at ECS Tuning | ||||
| 05 | 링크 | 1 | 31116768714 | $66.52 | Shop at ECS Tuning | |||||
| 06 | 육각머리볼트,칼라식 | M10X33-10.9 | 6 | 33326768354 | $1.14 | Shop at ECS Tuning | ||||
| 07 | 삽입 플러그 | M10-10-ZNS3 | 2 | 31106779393 | $1.95 | Shop at ECS Tuning | ||||
| 08 | 케이지 너트 | 2 | 31116768715 | $1.82 | Shop at ECS Tuning | |||||
| 고정용 부품, 첨부된 | ||||||||||
| 09 | 수리키트, 트레일링 링크, 좌측 | VALUE PARTS | 1 | 31122405861 | Shop at ECS Tuning | |||||
| 09 | 수리키트, 트레일링 링크, 우측 | VALUE PARTS | 1 | 31122405862 | Shop at ECS Tuning | |||||
| 10 | 유압마운트 | 2 | 31126763719 | Shop at ECS Tuning | ||||||
| 주의! | ||||||||||
| 10 | 세트,풀로드 고무 마운트 | 1 | 05/2011 | 31120393540 | $98.93 | 단종 | Shop at ECS Tuning | |||
| 개별 부품으로 대체된다. | ||||||||||
| 11 | 육각머리볼트, 와셔 포함 | M12X1.5X115-8.8 | 4 | 31106763928 | $2.94 | Shop at ECS Tuning | ||||
| 12 | 로크 너트 | M12X1,5-10 ZNS3 | 2 | 31106767496 | $2.37 | Shop at ECS Tuning | ||||
| 13 | 컴비네이션 너트 | M14X1,5-10ZNNIV | 4 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| 고정용 부품, 첨부된 | ||||||||||
| 14 | 수리키트, 위시본, 좌측 | VALUE PARTS | 1 | 31122405859 | Shop at ECS Tuning | |||||
| 14 | 수리키트, 위시본, 우측 | VALUE PARTS | 1 | 31122405860 | Shop at ECS Tuning | |||||
| 15 | 칼라 너트,풀림 방지 | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 다음이 장착된 자동차용 트레일러 커플링 |
S3ACA=예 |
|||||||||
| 16 | 단열판 | 1 | 03/2008 | 31146774592 | $29.93 | Shop at ECS Tuning | ||||
| 17 | 볼트, 자동 태핑 | M6X14,5 ZNS3 | 3 | 03/2008 | 07146967731 | $0.36 | Shop at ECS Tuning | |||
| 18 | 커버, 텐션 스트럿, 좌측 | 1 | 12/2007 | 31146785157 | $4.04 | Shop at ECS Tuning | ||||
주의
- ENDED = 이부품은 단종되었습니다
