스프링 스트럿 (앞)/캐리어/휠 베어링 for BMW 2 Series U06 Active Tourer 218d

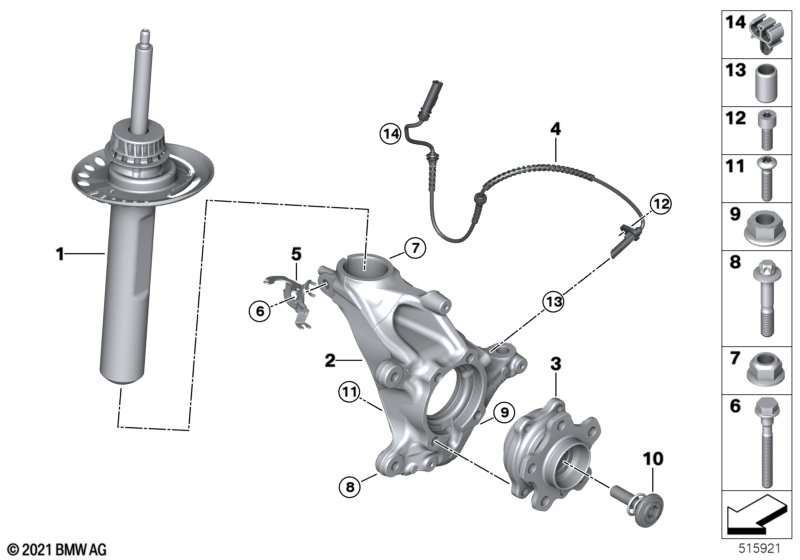

This 스프링 스트럿 (앞)/캐리어/휠 베어링 technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 다음이 장착된 자동차용 어댑티브 M 섀시 |
S2VFA=아니오 |
||||||||
| 01 | 스프링 스트럿, 앞 좌측 | 1 | 31306896341 | Shop at ECS Tuning | ||||||
| 01 | 스프링 스트럿, 앞 우측 | 1 | 31306896342 | Shop at ECS Tuning | ||||||
| 캠버 수정 마이너스 | ||||||||||
| 02 | 스위블 베어링, 캠버 수정, 좌측 | MINUS | 1 | 31216890173 | Shop at ECS Tuning | |||||
| 캠버 수정은 달리 실시할 수 없을 경우 스위블 베어링 수리 시 진행된다. | ||||||||||
| 02 | 스위블 베어링, 캠버 수정, 우측 | MINUS | 1 | 31216890174 | Shop at ECS Tuning | |||||
| 캠버 수정은 달리 실시할 수 없을 경우 스위블 베어링 수리 시 진행된다. | ||||||||||
| 캠버 수정 플러스 | ||||||||||
| 02 | 스위블 베어링, 캠버 수정, 좌측 | PLUS | 1 | 31216890175 | Shop at ECS Tuning | |||||
| 캠버 수정은 달리 실시할 수 없을 경우 스위블 베어링 수리 시 진행된다. | ||||||||||
| 02 | 스위블 베어링, 캠버 수정, 우측 | PLUS | 1 | 31216890176 | Shop at ECS Tuning | |||||
| 캠버 수정은 달리 실시할 수 없을 경우 스위블 베어링 수리 시 진행된다. | ||||||||||
| 시리즈 | ||||||||||
| 02 | 스위블 베어링, 좌측 | 1 | 31216890171 | Shop at ECS Tuning | ||||||
| 캠버 수정은 달리 실시할 수 없을 경우 스위블 베어링 수리 시 진행된다. | ||||||||||
| 02 | 스위블 베어링, 우측 | 1 | 31216890172 | Shop at ECS Tuning | ||||||
| 캠버 수정은 달리 실시할 수 없을 경우 스위블 베어링 수리 시 진행된다. | ||||||||||
| 03 | 휠 허브, 마운트 포함 | 2 | 12/2021 | 33406899175 | Shop at ECS Tuning | |||||
| 다음과 결합해서만 | ||||||||||
| -- | 칼라 볼트 및 압력 스프링 | M16X1,5X66 | 2 | 12/2021 | 31206866022 | Shop at ECS Tuning | ||||
| -- | 구형 칼라 나사 | M12X1.25X45 | 8 | 12/2021 | 31206872920 | Shop at ECS Tuning | ||||
| 03 | 휠 허브, 마운트 포함 | 2 | 01/2023 | 33406899174 | 단종 | Shop at ECS Tuning | ||||
| 다음과 결합해서만 | ||||||||||
| -- | 칼라 볼트 및 압력 스프링 | M16X1,5X66 | 2 | 01/2023 | 31206866022 | Shop at ECS Tuning | ||||
| -- | 구형 칼라 나사 | M12X1.25X45 | 8 | 01/2023 | 31206872920 | Shop at ECS Tuning | ||||
| 03 | 휠 허브, 마운트 포함 | 2 | 33406899175 | Shop at ECS Tuning | ||||||
| 다음과 결합해서만 | ||||||||||
| -- | 칼라 볼트 및 압력 스프링 | M16X1,5X66 | 2 | 31206866022 | Shop at ECS Tuning | |||||
| -- | 구형 칼라 나사 | M12X1.25X45 | 8 | 31206872920 | Shop at ECS Tuning | |||||
| 04 | 펄스 제너레이터,DSC,앞 | 2 | 07/2025 | 34525A3BAF2 | Shop at ECS Tuning | |||||
| 05 | 홀더, 브레이크 호스, 앞 좌측 | 1 | 34306854967 | Shop at ECS Tuning | ||||||
| 05 | 홀더, 브레이크 호스, 앞 우측 | 1 | 34306854968 | Shop at ECS Tuning | ||||||
| 06 | 육각머리볼트,플랜지 포함 | M10X85 8.8 ZNS3 | 2 | 31306798530 | Shop at ECS Tuning | |||||
| 07 | 육각 너트 | M10-10-ZNS3 | 2 | 07119905032 | $0.71 | Shop at ECS Tuning | ||||
| 07 | 육각 너트,플랜지 포함 | M10-10 ZNS3 | 2 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
| 08 | Asa-볼트 | M10X55 | 2 | 31106876027 | Shop at ECS Tuning | |||||
| 09 | 육각 너트,플랜지 포함 | M10-10 ZNS3 | 2 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
| 10 | 칼라 볼트 및 압력 스프링 | M16X1,5X66 | 2 | 31206866022 | Shop at ECS Tuning | |||||
| 11 | 구형 칼라 나사 | M12X1.25X45 | 8 | 07/2024 | 31206872920 | Shop at ECS Tuning | ||||
| 11 | 구형 칼라 나사 | 12X1,25X45 ZNS3 | 8 | 07148835169 | Shop at ECS Tuning | |||||
| 정비매뉴얼에 유의 | ||||||||||
| 12 | ASA 볼트 나사산 가공식 | M6X16 | 2 | 34509804151 | Shop at ECS Tuning | |||||
| 13 | Heli-Coil-나사부 삽입물 | M6X12 | 2 | 33306786621 | Shop at ECS Tuning | |||||
| 14 | 배선 클립 | 2 | 32731465257 | $0.84 | Shop at ECS Tuning | |||||
주의
- ENDED = 이부품은 단종되었습니다
