스티어링 칼럼 for BMW 2500-3.3Li 2800

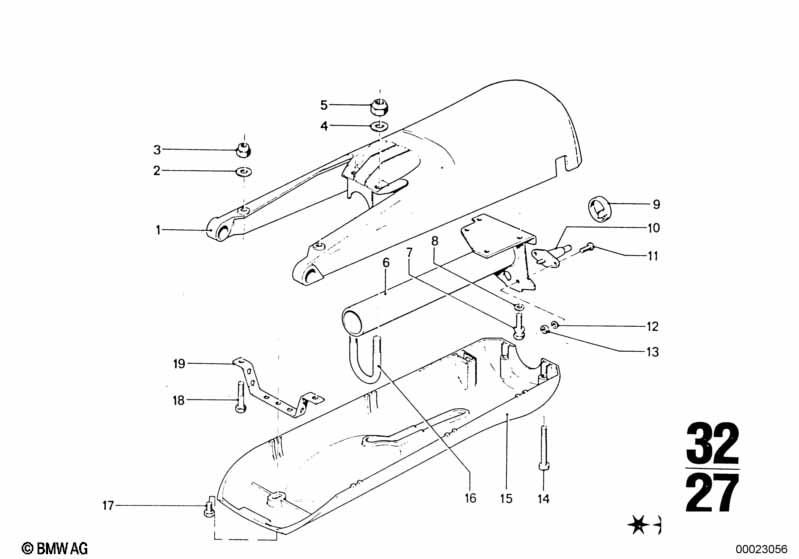

This 스티어링 칼럼 technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 트림 패널, 상부 | 1 | 32311117300 | $65.45 | 단종 | Shop at ECS Tuning | ||||
| 02 | 와셔 | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 03 | 육각 너트, 풀림 방지식 | M6-10 ZN | 2 | 02/1977 | 07129922705 | $0.27 | 단종 | Shop at ECS Tuning | ||
| 03 | 육각 너트, 풀림 방지식 | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 04 | 와셔 | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | 육각 너트, 풀림 방지식 | M8 | 2 | 03/1987 | 07129922714 | $0.17 | 단종 | Shop at ECS Tuning | ||
| 05 | 육각 너트, 풀림 방지식 | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 06 | 스티어링 칼럼 튜브 | 1 | 32311111726 | 단종 | Shop at ECS Tuning | |||||
| 07 | 전단 볼트 | M6X14 | 4 | 32321109641 | $1.39 | Shop at ECS Tuning | ||||
| 08 | 스프링 와셔 | B6 | 4 | 07119932072 | $0.09 | 단종 | Shop at ECS Tuning | |||
| 09 | 리셋 캠 | 1 | 32321118825 | $15.17 | 단종 | Shop at ECS Tuning | ||||
| 10 | 카본 핀 | 1 | 32331350750 | $7.64 | 단종 | Shop at ECS Tuning | ||||
| 11 | 납작머리 스크루 | M5X12-ZN | 2 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 12 | 스프링 와셔 | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 13 | 육각 너트 | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 14 | 납작머리 스크루 | M6X55 | 2 | 07119906437 | $0.45 | 단종 | Shop at ECS Tuning | |||
| 15 | 트림 패널, 하부 | 1 | 32311152991 | $25.83 | 단종 | Shop at ECS Tuning | ||||
| 16 | 브레이스 | 1 | 32311111789 | $8.59 | 단종 | Shop at ECS Tuning | ||||
| 17 | 세트,납작머리 스크루 10 | M6X8 | 1 | 07509064349 | 단종 | Shop at ECS Tuning | ||||
| 18 | 육각머리볼트 | M6X45 8.8 ZNS3 | 2 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 19 | 홀더 | 1 | 32311112909 | 단종 | Shop at ECS Tuning |
주의
- ENDED = 이부품은 단종되었습니다
