브레이크 파이프,앞,ABS for BMW 7 Series E23 728i (1986)

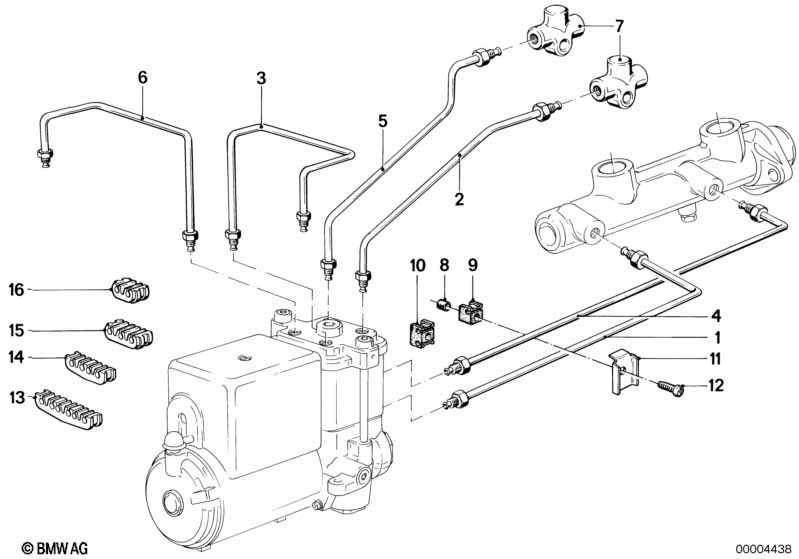

This 브레이크 파이프,앞,ABS technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 회로 1 | ||||||||||
| 01 | 파이프 | M10/M10-2039MM | 1 | 34326755649 | $10.03 | Shop at ECS Tuning | ||||
| 02 | 파이프 | M10/M10-751MM | 1 | 34326755591 | $8.65 | Shop at ECS Tuning | ||||
| 03 | 파이프 | M10/M10-620MM | 1 | 34326755585 | $7.65 | Shop at ECS Tuning | ||||
| 회로 2 | ||||||||||
| 04 | 파이프 | M10/M10-2109MM | 1 | 34326755653 | $17.08 | Shop at ECS Tuning | ||||
| 05 | 파이프 | M10/M10-862MM | 1 | 34326755596 | $8.65 | Shop at ECS Tuning | ||||
| 06 | 파이프 | M10/M10-1980MM | 1 | 34326755646 | $8.46 | Shop at ECS Tuning | ||||
| 07 | 어댑터 | M10X1 | 2 | 34321160028 | $7.23 | Shop at ECS Tuning | ||||
| 08 | 스페이서 | 1 | 34321108306 | $0.61 | Shop at ECS Tuning | |||||
| 09 | 클램프 | 1 | 34321108210 | $0.60 | Shop at ECS Tuning | |||||
| 10 | 클램프 | 1 | 34321108212 | $2.70 | Shop at ECS Tuning | |||||
| 11 | 홀더 | 1 | 34321155062 | $0.60 | Shop at ECS Tuning | |||||
| 12 | 셀프태핑스크루 | 1 | 34321119239 | $0.27 | Shop at ECS Tuning | |||||
| 13 | 홀더, 브레이크 파이프 | 1 | 34321155786 | $1.43 | 단종 | Shop at ECS Tuning | ||||
| 14 | 스페이서, 4칸 | 1 | 34326777692 | $0.38 | Shop at ECS Tuning | |||||
| 15 | 스페이서 | 1 | 34321107991 | $1.02 | Shop at ECS Tuning | |||||
| 16 | 홀더, 브레이크 파이프 | 1 | 34321107992 | $1.02 | Shop at ECS Tuning | |||||
주의
- ENDED = 이부품은 단종되었습니다
