앞 휠 브레이크 for BMW 3 Series G20 세단 320e

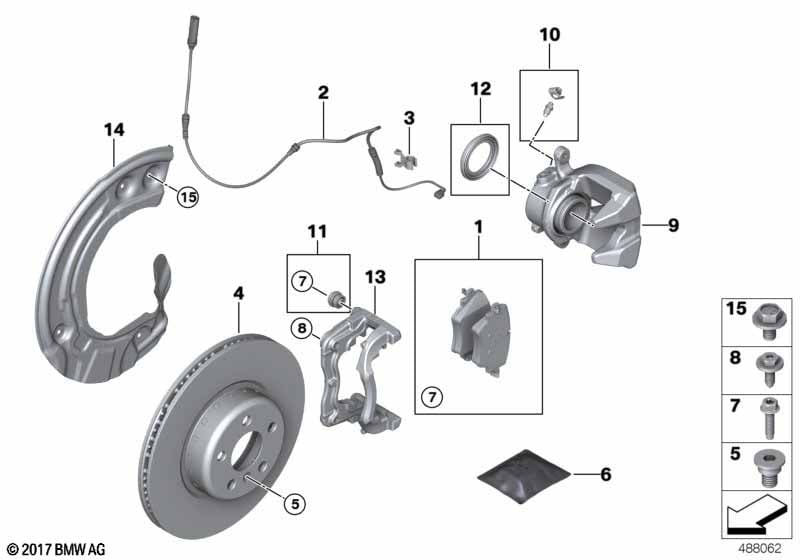

This 앞 휠 브레이크 technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 세단 320e. It includes part names, part numbers and all associated mounting hardware.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 다음이 장착된 자동차용 M 스포츠브레이크 그리고 M 스포츠 브레이크, 적색 고광택 |
S2NHA=아니오 S3M2A=아니오 |
||||||||
| 01 | 수리세트, 브레이크 라이닝, 비석면 | 1 | 07/2020 | 34106888777 | Shop at ECS Tuning | |||||
| 02 | 브레이크 패드 마모 센서, 앞 | 1 | 34356870349 | Shop at ECS Tuning | ||||||
| 03 | 클립, 브레이크 라이닝 (마모)센서 | 1 | 34356794949 | Shop at ECS Tuning | ||||||
| 04 | 브레이크 디스크, 경량구조, 환기식 | 330X24 | 2 | 08/2023 | 34116860907 | Shop at ECS Tuning | ||||
| 04 | 브레이크 디스크, 경량구조, 환기식 | 330X24 | 2 | 34106880072 | Shop at ECS Tuning | |||||
| 04 | 브레이크 디스크, 경량구조, 환기식 | 330X24 | 2 | 34106880072 | Shop at ECS Tuning | |||||
| 05 | 6각구멍 볼트 | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 다음이 장착된 자동차용 국가별 사양,중국 |
L8AAA=아니오 |
|||||||||
| 06 | 브레이크 패드 페이스트 | 3G | 2 | 83192158851 | Shop at ECS Tuning | |||||
| 다음이 장착된 자동차용 국가별 사양,중국 |
L8AAA=예 |
|||||||||
| 06 | 브레이크 패드 페이스트 | 3 G | 2 | 83192180000 | Shop at ECS Tuning | |||||
| 07 | 육각머리볼트 | M8X22 | 2 | 34206850560 | Shop at ECS Tuning | |||||
| 08 | 톡스 볼트, 와셔 포함 | M12X1,5X43 ZNS3 | 4 | 34106864424 | Shop at ECS Tuning | |||||
| 09 | 브레이크 캘리퍼 하우징, 좌측 | 1 | 34106872799 | Shop at ECS Tuning | ||||||
| 09 | 브레이크 캘리퍼 하우징, 우측 | 1 | 34106872800 | Shop at ECS Tuning | ||||||
| 09 | 브레이크 캘리퍼 하우징, 좌측 | 1 | 34106882253 | Shop at ECS Tuning | ||||||
| 09 | 브레이크 캘리퍼 하우징, 우측 | 1 | 34106882254 | Shop at ECS Tuning | ||||||
| 10 | 수리세트, 공기빼기 밸브 | 2 | 34116768188 | $6.52 | Shop at ECS Tuning | |||||
| 11 | 수리세트, 고무 부트 | 2 | 34116872804 | Shop at ECS Tuning | ||||||
| 12 | 씰링 세트, 브레이크 캘리퍼 | 2 | 34116872802 | Shop at ECS Tuning | ||||||
| 13 | 브레이크 백 플레이트, 좌측 | 1 | 34106882255 | Shop at ECS Tuning | ||||||
| 13 | 브레이크 백 플레이트, 우측 | 1 | 34106882256 | Shop at ECS Tuning | ||||||
| 13 | 브레이크 백 플레이트, 좌측 | 1 | 34106882259 | Shop at ECS Tuning | ||||||
| 13 | 브레이크 백 플레이트, 우측 | 1 | 34106882260 | Shop at ECS Tuning | ||||||
| 14 | 보호판, 좌측 | 1 | 34106871335 | Shop at ECS Tuning | ||||||
| 14 | 보호판, 우측 | 1 | 34106871336 | Shop at ECS Tuning | ||||||
| 14 | 보호판, 좌측 | 1 | 34106871337 | Shop at ECS Tuning | ||||||
| 14 | 보호판, 우측 | 1 | 34106871338 | Shop at ECS Tuning | ||||||
| 15 | 육각머리볼트 | M6X12-10.9-MK- | 8 | 34116868785 | Shop at ECS Tuning | |||||
