가속페달 for BMW 2500-3.3Li 2500

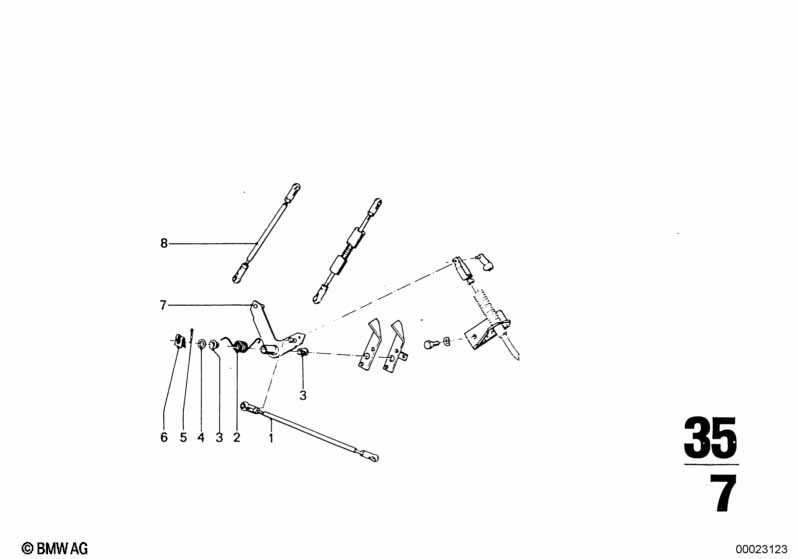

This 가속페달 technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 푸쉬 로드 | 1 | 08/1968 | 02/1977 | 35411113575 | $118.30 | 단종 | Shop at ECS Tuning | ||
| 02 | 스프링 | 1 | 35411106271 | $8.04 | 단종 | Shop at ECS Tuning | ||||
| 03 | 베어링 부싱 | D=10MM | 2 | 35411100674 | $0.80 | Shop at ECS Tuning | ||||
| 04 | 와셔 | 10-200HV-ZNNIV | 1 | 07119907114 | Shop at ECS Tuning | |||||
| 06 | 클램프 | 1 | 35411104248 | $0.82 | 단종 | Shop at ECS Tuning | ||||
| 07 | 중간 레버 | 1 | 08/1968 | 02/1977 | 35411102597 | 단종 | Shop at ECS Tuning |
주의
- ENDED = 이부품은 단종되었습니다
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 가속페달?
- This technical diagram illustrates the 가속페달 within the 페달 group for the 2500-3.3Li 2500. It provides a detailed exploded view of the components, identifying key parts such as the 푸쉬 로드 (Part #35411113575).
- Which models use the hardware listed in this 가속페달?
- The hardware and components featured in the 가속페달 are specific to the 2500-3.3Li 2500. These technical specifications ensure that parts like the 푸쉬 로드 (35411113575) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 가속페달 assembly?
- Each item in the 가속페달 corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the 푸쉬 로드 by locating its position on the schematic, which then links to the official BMW part number 35411113575 for the 페달 section.
