BMW 경합금 휠,레이디얼 스포크 48 for BMW 5 Series E39 540iP (2001)

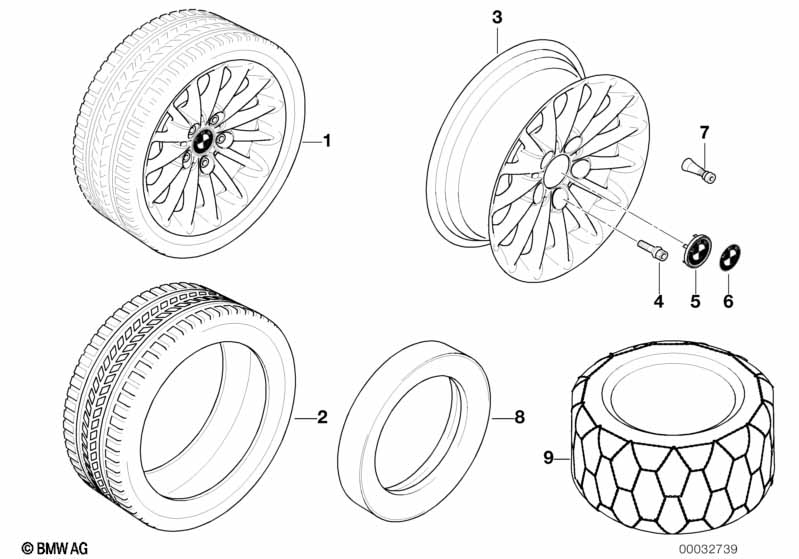

This BMW 경합금 휠,레이디얼 스포크 48 technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540iP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 다음이 장착된 자동차용 비상운전 특성을 가진 런플랫 타이어 그리고 타이어 공기압 감시 시스템 (RDC) |
S258A=예 S265A=예 |
|||||||||
| 02 | 타이어 | 225/55R16 95W | 5 | 36111092791 | 단종 | Shop at ECS Tuning | ||||
| 03 | 디스크 휠, 경합금 | 7JX16 ET:20 | 5 | 36111095441 | $279.95 | Shop at ECS Tuning | ||||
| 04 | 휠 볼트, 흑색 | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | 허브캡, 크롬 가장자리 포함 | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 다음이 장착된 자동차용 비상운전 특성을 가진 런플랫 타이어 그리고 타이어 공기압 감시 시스템 (RDC) |
S258A=예 S265A=예 |
|||||||||
| 06 | BMW 엠블렘 각인/도장 | 4 | 36136767547 | $5.02 | 단종 | Shop at ECS Tuning | ||||
| 07 | 고무 밸브 | L=42,5MM | 5 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | 스크루-인 밸브,RDC | SCHWARZ | 5 | 36146792828 | $13.90 | Shop at ECS Tuning | ||||
| 08 | 서포트링,RDC | 5 | 36111096549 | $2014.38 | 단종, +대품 | Shop at ECS Tuning | ||||
| 09 | 스노-체인시스템,Rud-Matic,가장자리 자국 | 1 | 85519404304 | 단종 | Shop at ECS Tuning | |||||
주의
- ENDED = 이부품은 단종되었습니다
- 코어(고품)=부가된 고품가격(고품의 반품가능성)
