앞 트림 for BMW 3 Series E30 320i (1992)

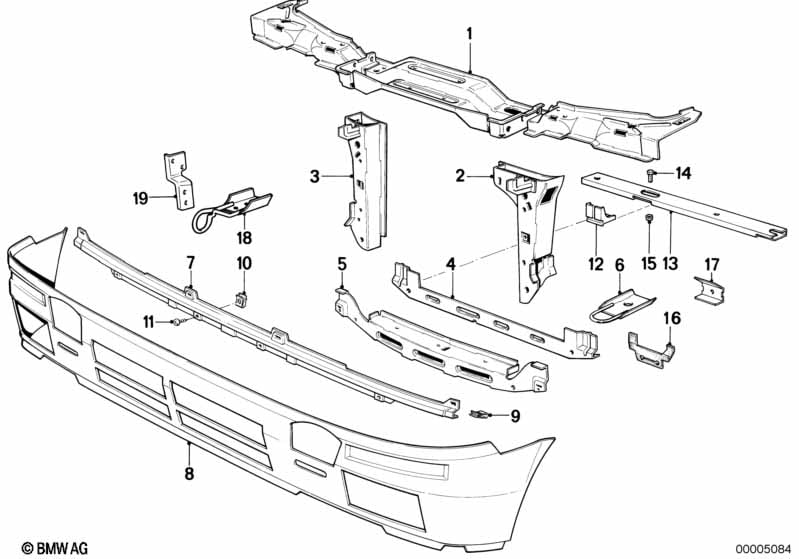

This 앞 트림 technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 캐리어 | 1 | 41111916994 | $141.98 | Shop at ECS Tuning | |||||
| 02 | 서포트, 좌측 | 1 | 41131911155 | $22.62 | Shop at ECS Tuning | |||||
| 03 | 서포트, 우측 | 1 | 41131911156 | $22.62 | Shop at ECS Tuning | |||||
| 04 | 엔드 플레이트 | 1 | 41111884230 | $27.88 | 단종 | Shop at ECS Tuning | ||||
| 05 | 크로스멤버,앞 | 1 | 41111911122 | $81.00 | Shop at ECS Tuning | |||||
| 06 | 콘솔,견인고리-라디에이터,좌 | 1 | 09/1987 | 41131972753 | $12.19 | 단종 | Shop at ECS Tuning | |||
| 06 | 콘솔,견인고리-라디에이터,우 | 1 | 09/1987 | 41131972954 | $13.17 | Shop at ECS Tuning | ||||
| 08 | 앞 트림 | 1 | 10/1990 | 41331961225 | $268.17 | Shop at ECS Tuning | ||||
| 다음이 장착된 자동차용 에어컨 그리고 열대지방 사양 |
=예 =예 |
|||||||||
| 08 | 앞 트림 | 1 | 10/1990 | 41331961227 | $267.32 | 단종 | Shop at ECS Tuning | |||
| 09 | 삽입 플러그 | M5 | 4 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 09 | 스피드 너트 | B3,9 | 4 | 51131914097 | $1.03 | Shop at ECS Tuning | ||||
| 10 | 스피드 너트 | ST 4,8-4-ZNS3 | 6 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 10 | 스피드 너트 | ST4,8 | 6 | 41331979984 | $0.20 | 단종 | Shop at ECS Tuning | |||
| 11 | 육각머리 셀프태핑 스크루 | ST4,8X13-ZN3 | 4 | 07119904285 | $0.38 | Shop at ECS Tuning | ||||
| 11 | 육각머리 셀프태핑 스크루 | ST4,8X19-C-Z2 | 4 | 07119916949 | $0.25 | Shop at ECS Tuning | ||||
| 다음이 장착된 자동차용 에어컨 |
=예 |
|||||||||
| 13 | 브래킷 | 1 | 17101177917 | $49.26 | Shop at ECS Tuning | |||||
| 14 | 육각머리볼트, 와셔 포함 | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| 15 | 육각 너트, 와셔 포함 | M6 | 2 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 16 | 커버, 좌측 | 1 | 51711916185 | $10.43 | Shop at ECS Tuning | |||||
| 16 | 커버, 우측 | 1 | 51711916186 | $10.43 | Shop at ECS Tuning | |||||
| 17 | 서포트 | 2 | 41111906345 | $3.32 | Shop at ECS Tuning | |||||
주의
- ENDED = 이부품은 단종되었습니다
