차체 앞부분,개별 부품 for BMW 3 Series E30 320i (1992)

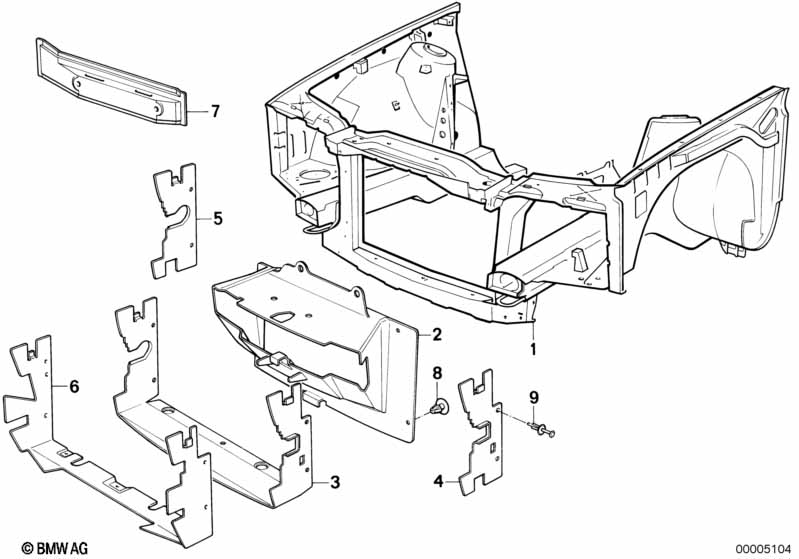

This 차체 앞부분,개별 부품 technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 다음이 장착된 자동차용 국가사양,일본 |
L807A=예 |
|||||||||
| 01 | 차체 앞부분 | BASIS | 1 | 10/1990 | 41008134659 | $3269.88 | 단종 | Shop at ECS Tuning | ||
| 02 | 에어 라인 | 1 | 09/1987 | 51711971956 | $44.54 | Shop at ECS Tuning | ||||
| 다음이 장착된 자동차용 국가사양,일본 그리고 에어컨 |
L807A=예 =예 |
|||||||||
| 03 | 에어 라인 | 1 | 09/1987 | 51711966439 | $36.16 | 단종 | Shop at ECS Tuning | |||
| 04 | 에어 라인, 좌측 | 1 | 09/1987 | 51711966577 | $16.35 | Shop at ECS Tuning | ||||
| 05 | 에어 라인, 우측 | 1 | 09/1987 | 51711966578 | $16.35 | Shop at ECS Tuning | ||||
| 다음이 장착된 자동차용 국가사양,일본 |
L807A=예 |
|||||||||
| 08 | 클램프 | X | 09/1987 | 51711916039 | $0.35 | Shop at ECS Tuning | ||||
| 08 | 클램프 | X | 09/1987 | 51711955459 | $0.42 | Shop at ECS Tuning | ||||
| 09 | 익스팬딩 리벳 | D=7,5MM | X | 09/1987 | 51481915964 | $0.43 | Shop at ECS Tuning | |||
주의
- ENDED = 이부품은 단종되었습니다
