보디-골격 for BMW 6 Series E63 630i (2007)

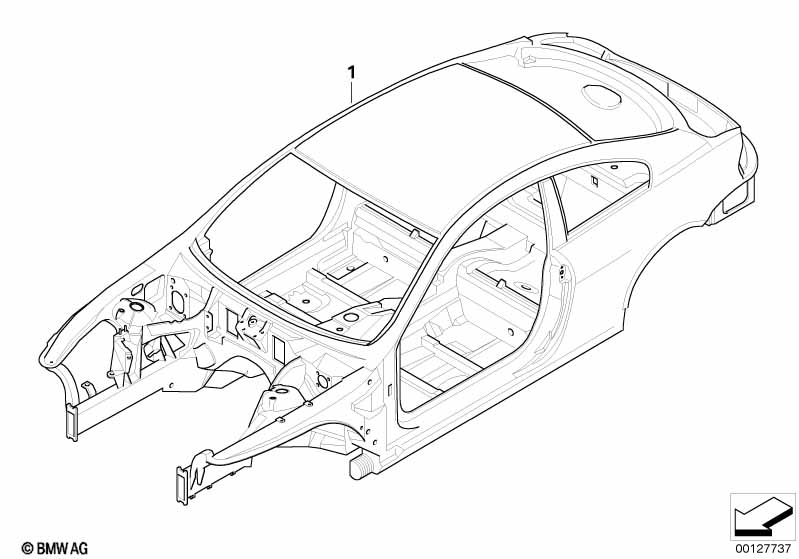

This 보디-골격 technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 보디-골격 | BASIS | 1 | 09/2005 | 41007155395 | 단종 | Shop at ECS Tuning | |||
| 01 | 보디-골격, 선루프 | BASIS | 1 | 09/2005 | 41007155397 | 단종 | Shop at ECS Tuning |
주의
- ENDED = 이부품은 단종되었습니다
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 630i 보디-골격?
- This technical diagram illustrates the 보디-골격 within the 보디,강판 group for the 6 Series E63 630i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the 보디-골격 (Part #41007155395).
- Which models use the hardware listed in this 보디-골격?
- The hardware and components featured in the 보디-골격 are specific to the 6 Series E63 630i produced during 2007. These technical specifications ensure that parts like the 보디-골격 (41007155395) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 보디-골격 assembly?
- Each item in the 보디-골격 corresponds to the numbered list below the illustration. For the 6 Series E63 630i, you can identify the 보디-골격 by locating its position on the schematic, which then links to the official BMW part number 41007155395 for the 보디,강판 section.
