트림패널 계기판 for BMW 3 Series E21 320 (1979)

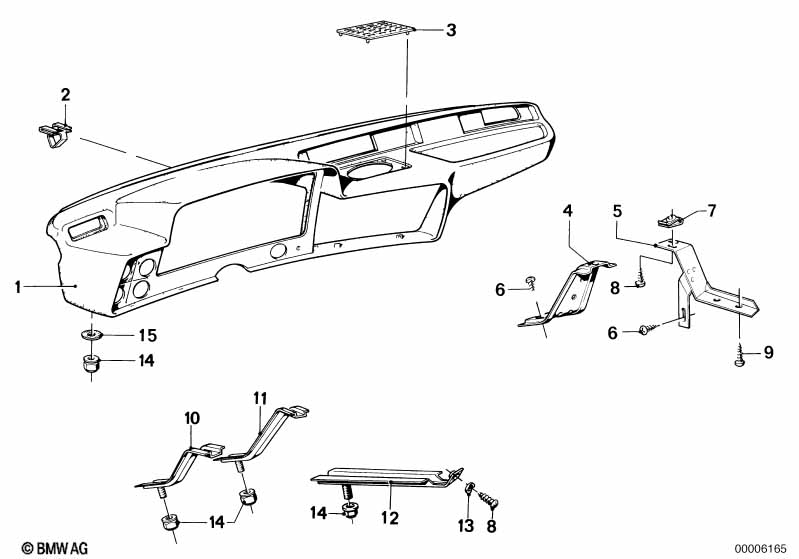

This 트림패널 계기판 technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 트림패널 계기판 | 1 | 08/1979 | 51451822095 | $926.32 | 단종 | Shop at ECS Tuning | |||
| 02 | 클램프 | 2 | 51451836010 | $0.34 | 단종 | Shop at ECS Tuning | ||||
| 03 | 스피커 커버 | 1 | 51451849009 | $10.23 | 단종 | Shop at ECS Tuning | ||||
| 04 | 보강 | 1 | 51451850480 | $4.18 | 단종 | Shop at ECS Tuning | ||||
| 05 | 브래킷 | 1 | 51451850477 | 단종 | Shop at ECS Tuning | |||||
| 06 | 육각머리 셀프태핑 스크루 | ST4,8X16-C-Z1 | 4 | 07119916945 | $0.18 | Shop at ECS Tuning | ||||
| 06 | 육각머리 셀프태핑 스크루 | ST4,8X16-C-Z1 | 4 | 07119906265 | 단종 | Shop at ECS Tuning | ||||
| 07 | 스피드 너트 | ST 4,8-4-ZNS3 | 1 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 08 | 접시머리 볼트 | ST4,8X16 Z2 | 1 | 07119907789 | $0.13 | 단종 | Shop at ECS Tuning | |||
| 09 | 접시머리 태핑 스크루 | ST4,2X25 | 1 | 07119902473 | $0.11 | Shop at ECS Tuning | ||||
| 10 | 브래킷 | 1 | 51451826086 | 단종 | Shop at ECS Tuning | |||||
| 11 | 브래킷 | 1 | 08/1979 | 51451836334 | $1.07 | 단종 | Shop at ECS Tuning | |||
| 13 | 스프링 와셔 | B5 | 1 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 14 | 칼라 너트 | 7 | 51451819789 | 단종 | Shop at ECS Tuning | |||||
| 15 | 어댑터 | 4 | 51451836016 | $0.17 | 단종 | Shop at ECS Tuning |
주의
- ENDED = 이부품은 단종되었습니다
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 트림패널 계기판?
- This technical diagram illustrates the 트림패널 계기판 within the 자동차 사양 group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the 트림패널 계기판 (Part #51451822095).
- Which models use the hardware listed in this 트림패널 계기판?
- The hardware and components featured in the 트림패널 계기판 are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the 트림패널 계기판 (51451822095) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 트림패널 계기판 assembly?
- Each item in the 트림패널 계기판 corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the 트림패널 계기판 by locating its position on the schematic, which then links to the official BMW part number 51451822095 for the 자동차 사양 section.
