에어 덕트 for BMW 3 Series E46 318Ci (2001)
This 에어 덕트 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 커버,위 | 1 | 51718211467 | $14.05 | Shop at ECS Tuning | |||||
| 02 | 에어 덕트,앞 | 1 | 06/1999 | 03/2003 | 51718268371 | $56.15 | Shop at ECS Tuning | |||
| 03 | 익스팬딩 리벳 | 4 | 51718229003 | $0.45 | Shop at ECS Tuning | |||||
| 다음이 장착된 자동차용 공기역학 부품 패키지 |
S716A=예 |
|||||||||
| 04 | 에어 덕트,브레이크,앞 좌 | - M - | 1 | 03/2003 | 51717893129 | $33.90 | Shop at ECS Tuning | |||
| 04 | 에어 덕트,브레이크,앞 우 | - M - | 1 | 03/2003 | 51717893130 | $33.90 | Shop at ECS Tuning | |||
| 05 | 익스팬딩 너트 | ST 4.8 WEISS | 4 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 05 | 익스팬딩 너트 | L=15MM, DMAX=12 | 4 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 07 | 납작머리 스크루 | TS5X20 | 2 | 07146986938 | $0.45 | Shop at ECS Tuning | ||||
| 13 | 흡기구 목 | 1 | 13717508711 | $79.63 | Shop at ECS Tuning | |||||
| 14 | 익스팬딩 리벳 | 4 | 51471919209 | $0.45 | Shop at ECS Tuning | |||||
| 16 | 에어 덕트, 좌측 | 1 | 51718235245 | $28.30 | Shop at ECS Tuning | |||||
| 16 | 에어 덕트, 우측 | 1 | 51718235246 | $28.30 | Shop at ECS Tuning | |||||

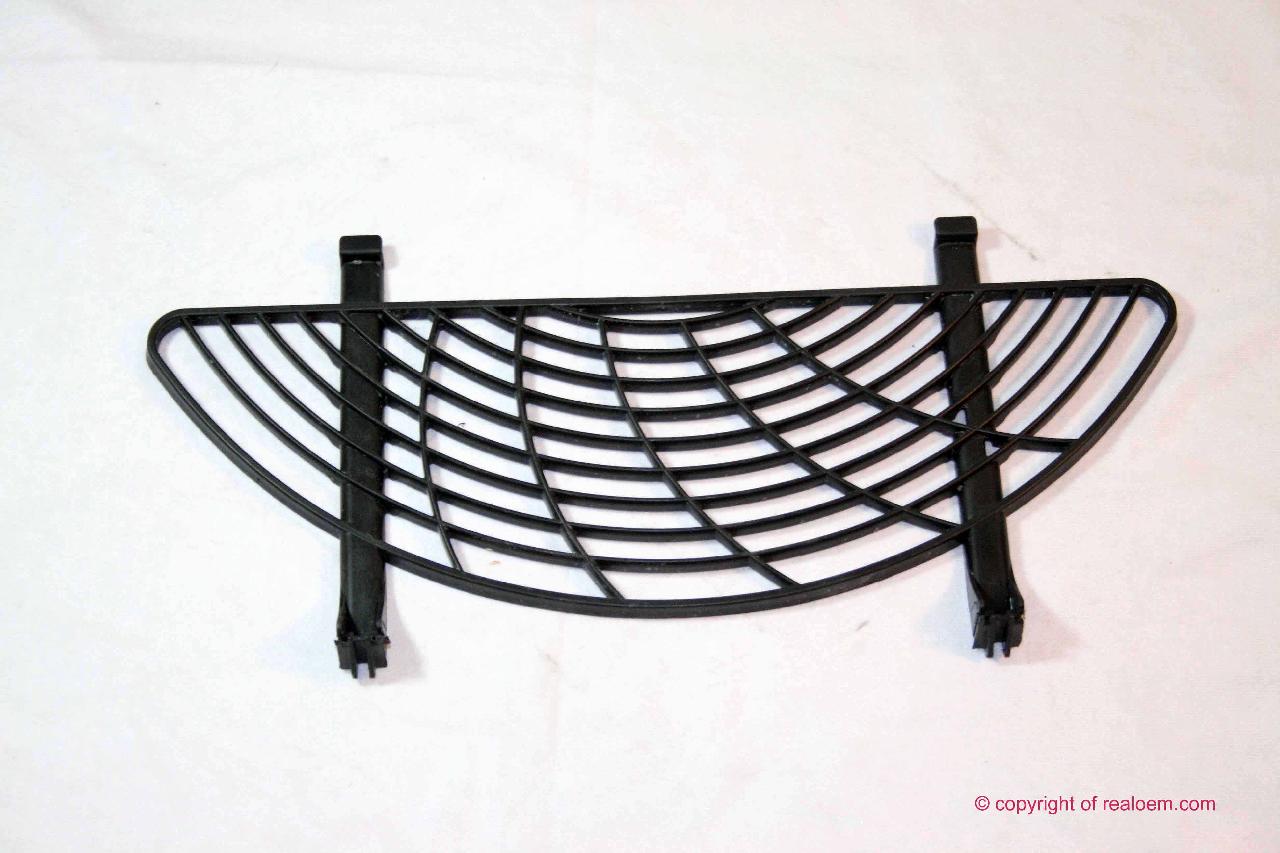

| 23 | 보호 그리드 | 1 | 51717000432 | $10.52 | Shop at ECS Tuning | |||||
| 24 | 에어 덕트,브레이크,앞 좌 | 1 | 51718235243 | $28.30 | Shop at ECS Tuning | |||||

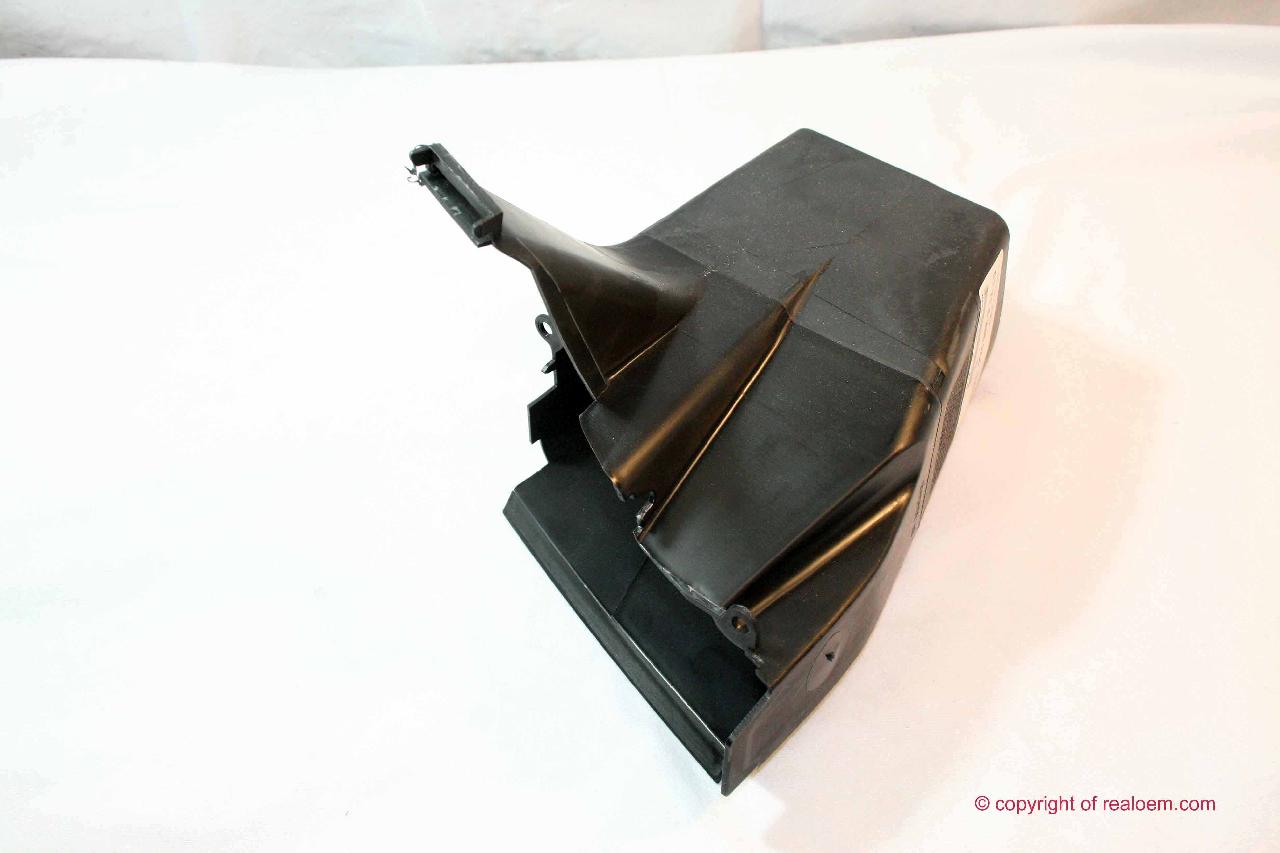

| 24 | 에어 덕트,브레이크,앞 우 | 1 | 51718235244 | $28.30 | Shop at ECS Tuning | |||||
