도어 윈도우 메커니즘,앞 for BMW 2.5CS-3.0CSL 3.0CSiL (1975)

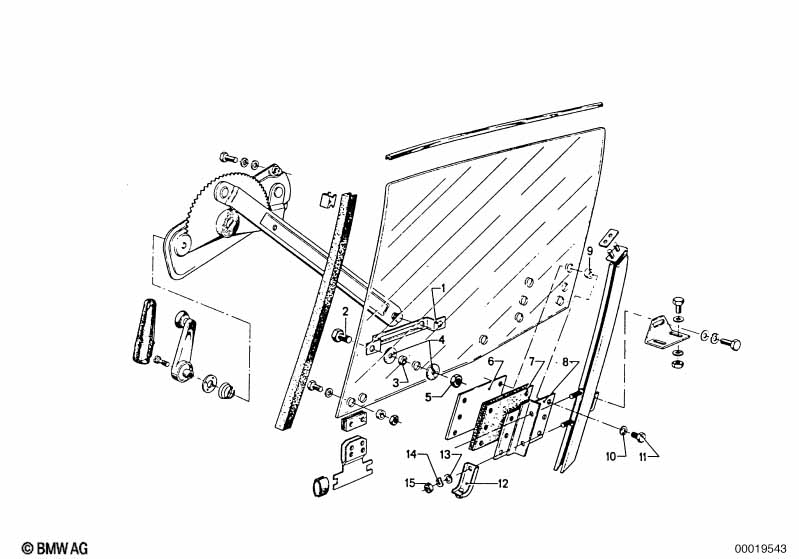

This 도어 윈도우 메커니즘,앞 technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSiL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 가이드 | 1 | 51326754212 | 단종 | Shop at ECS Tuning | |||||
| 01 | 가이드 | 1 | 51326754213 | 단종 | Shop at ECS Tuning | |||||
| 02 | 육각머리볼트 | 8X20 | 4 | 51326754268 | 단종 | Shop at ECS Tuning | ||||
| 03 | 부싱 | 4 | 51326754221 | 단종 | Shop at ECS Tuning | |||||
| 04 | 고무 와셔 | 8 | 51326754219 | 단종 | Shop at ECS Tuning | |||||
| 05 | 육각 너트, 풀림 방지식 | M8-8-ZNS3 | 4 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 06 | 가이드 플레이트 | 1 | 51326754215 | 단종 | Shop at ECS Tuning | |||||
| 06 | 가이드 플레이트 | 1 | 51326754216 | 단종 | Shop at ECS Tuning | |||||
| 07 | 고무 마운트 | 2 | 51326754223 | 단종 | Shop at ECS Tuning | |||||
| 08 | 가이드 플레이트 | 1 | 51326754217 | 단종 | Shop at ECS Tuning | |||||
| 08 | 가이드 플레이트 | 1 | 51326754218 | 단종 | Shop at ECS Tuning | |||||
| 09 | 부싱 | 6 | 51327041760 | $2.09 | Shop at ECS Tuning | |||||
| 10 | 와셔 | 6,4 | 6 | 07119936424 | $0.58 | 단종 | Shop at ECS Tuning | |||
| 11 | 육각머리볼트 | M6X12-8.8-ZNNIV | 6 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 12 | 스토퍼 | 1 | 51326746102 | 단종 | Shop at ECS Tuning | |||||
| 12 | 스토퍼 | 1 | 51326746103 | 단종 | Shop at ECS Tuning | |||||
| 13 | 와셔 | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning |
주의
- ENDED = 이부품은 단종되었습니다
