도어 윈도우 메커니즘,앞 for BMW 2.5CS-3.0CSL 3.0CSiL (1975)

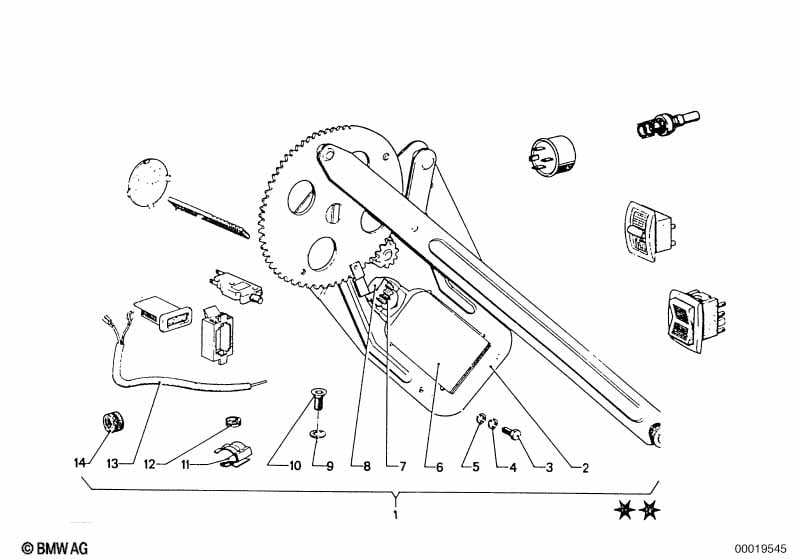

This 도어 윈도우 메커니즘,앞 technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSiL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | 전동식 윈도우 레귤레이터,앞 좌 | 1 | 51338745150 | $680.95 | 단종 | Shop at ECS Tuning | ||||
| 02 | 전동식 윈도우 레귤레이터,앞 우 | 1 | 51338745151 | $680.95 | Shop at ECS Tuning | |||||
| 04 | 스프링 와셔 | B6 | 2 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 05 | 와셔 | 6,4 | 2 | 07119936424 | $0.58 | 단종 | Shop at ECS Tuning | |||
| 07 | 피니언,수동 리프팅 | 2 | 51338745163 | 단종 | Shop at ECS Tuning | |||||
| 08 | 클러치,웜 기어 포함 | 2 | 51371801878 | $277.88 | 단종 | Shop at ECS Tuning | ||||
| 09 | 이붙이 와셔 | A4,3 | 2 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 11 | 클램프 | 2 | 07147202015 | Shop at ECS Tuning | ||||||
| 12 | 그로밋 | 2 | 61138745169 | 단종 | Shop at ECS Tuning | |||||
| 14 | 그로밋 | 2 | 16124780109 | $1.51 | Shop at ECS Tuning |
주의
- ENDED = 이부품은 단종되었습니다
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CSiL 도어 윈도우 메커니즘,앞?
- This technical diagram illustrates the 도어 윈도우 메커니즘,앞 within the 자동차 사양 group for the 2.5CS-3.0CSL 3.0CSiL produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the 전동식 윈도우 레귤레이터,앞 좌 (Part #51338745150).
- Which models use the hardware listed in this 도어 윈도우 메커니즘,앞?
- The hardware and components featured in the 도어 윈도우 메커니즘,앞 are specific to the 2.5CS-3.0CSL 3.0CSiL produced during 1975. These technical specifications ensure that parts like the 전동식 윈도우 레귤레이터,앞 좌 (51338745150) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 도어 윈도우 메커니즘,앞 assembly?
- Each item in the 도어 윈도우 메커니즘,앞 corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CSiL, you can identify the 전동식 윈도우 레귤레이터,앞 좌 by locating its position on the schematic, which then links to the official BMW part number 51338745150 for the 자동차 사양 section.
