트림패널, 앞 for BMW 5 Series G60 세단 520i (2025)

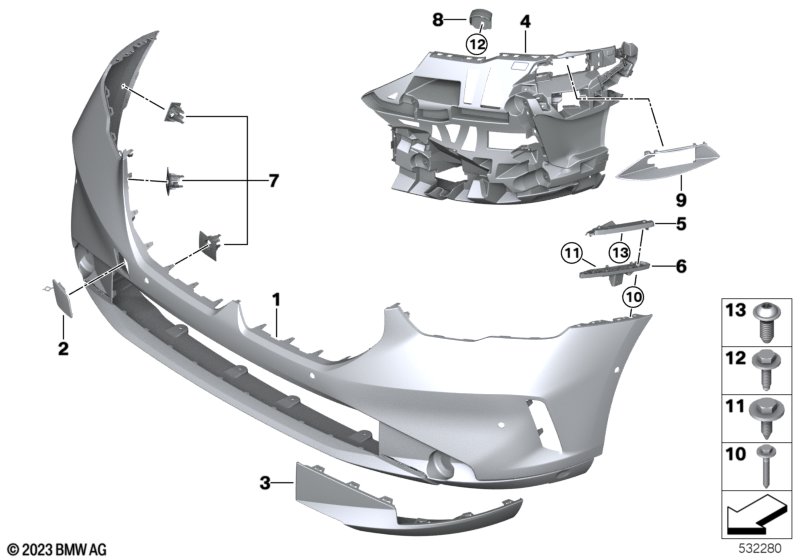

This 트림패널, 앞 technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 세단 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 다음이 장착된 자동차용 M SPORT EXTERIEURUMFAENGE |
S9T1A=아니오 |
||||||||
| 01 | 범퍼 판넬 프라이머 처리 앞 | BASIS - PDC | 1 | 51115A6A3B8 | Shop at ECS Tuning | |||||
| 02 | 견인고리 커버 프라이머 처리됨 | 1 | 51115A6A3C8 | Shop at ECS Tuning | ||||||
| 03 | 범퍼 트림패널 아래 왼쪽 | 1 | 51115A36023 | Shop at ECS Tuning | ||||||
| 03 | 범퍼 트림패널 아래 오른쪽 | 1 | 51115A36024 | Shop at ECS Tuning | ||||||
| 04 | 고정 프레임 왼쪽 | 1 | 51119879291 | Shop at ECS Tuning | ||||||
| 04 | 고정 프레임 오른쪽 | 1 | 51119879292 | Shop at ECS Tuning | ||||||
| 05 | 가이드 범퍼 위 좌측 | 1 | 51119879293 | Shop at ECS Tuning | ||||||
| 05 | 가이드 범퍼 위 우측 | 1 | 51119879294 | Shop at ECS Tuning | ||||||
| 06 | 범퍼 가이드 아래 왼쪽 | 1 | 51119879295 | Shop at ECS Tuning | ||||||
| 06 | 범퍼 가이드 아래 오른쪽 | 1 | 51119879296 | Shop at ECS Tuning | ||||||
| 07 | 세트 마운트 PDC/PMA-센서 | 1 | 51115A6A3C9 | Shop at ECS Tuning | ||||||
| 08 | Abstützung | 2 | 51115A017A3 | Shop at ECS Tuning | ||||||
| 다음이 장착된 자동차용 주행 어시스턴트 프로페셔널 |
S5AUA=예 |
|||||||||
| 09 | 쇽압소바 측면 왼쪽 | 1 | 51115A017A5 | Shop at ECS Tuning | ||||||
| 09 | 쇽압소바 측면 오른쪽 | 1 | 51115A017A6 | Shop at ECS Tuning | ||||||
| 10 | 나사 | TS5X35 SW8 D=15 | 4 | 07129907535 | Shop at ECS Tuning | |||||
| 11 | 육각머리볼트 | TS5X17 SW8 D=16 | 2 | 07149126885 | $0.49 | Shop at ECS Tuning | ||||
| 12 | 육각머리볼트 | M6X20-8.8 | 2 | 07119907898 | Shop at ECS Tuning | |||||
| 13 | 나사 | TS 5X12 | 2 | 07129908078 | Shop at ECS Tuning | |||||
