시트 벤치-뒷부분 for BMW R45-R65LS..78-85 R65LS (1983)
This 시트 벤치-뒷부분 technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 뒷부분, 프라이머코팅 | 1 | 52532301509 | $147.97 | 단종, +대품 | Shop at ECS Tuning | ||||
| 02 | 스피드 너트 | ST4,2-1-ZNS3 | 2 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 03 | 접시머리 볼트 | ST4,2X13-Z2 | 6 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 04 | 와셔 | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | 손잡이, 좌측 | 1 | 52532301517 | $141.18 | 단종, +대품 | Shop at ECS Tuning | ||||
| 06 | 손잡이, 우측 | 1 | 52532301518 | $137.09 | 단종 | Shop at ECS Tuning | ||||

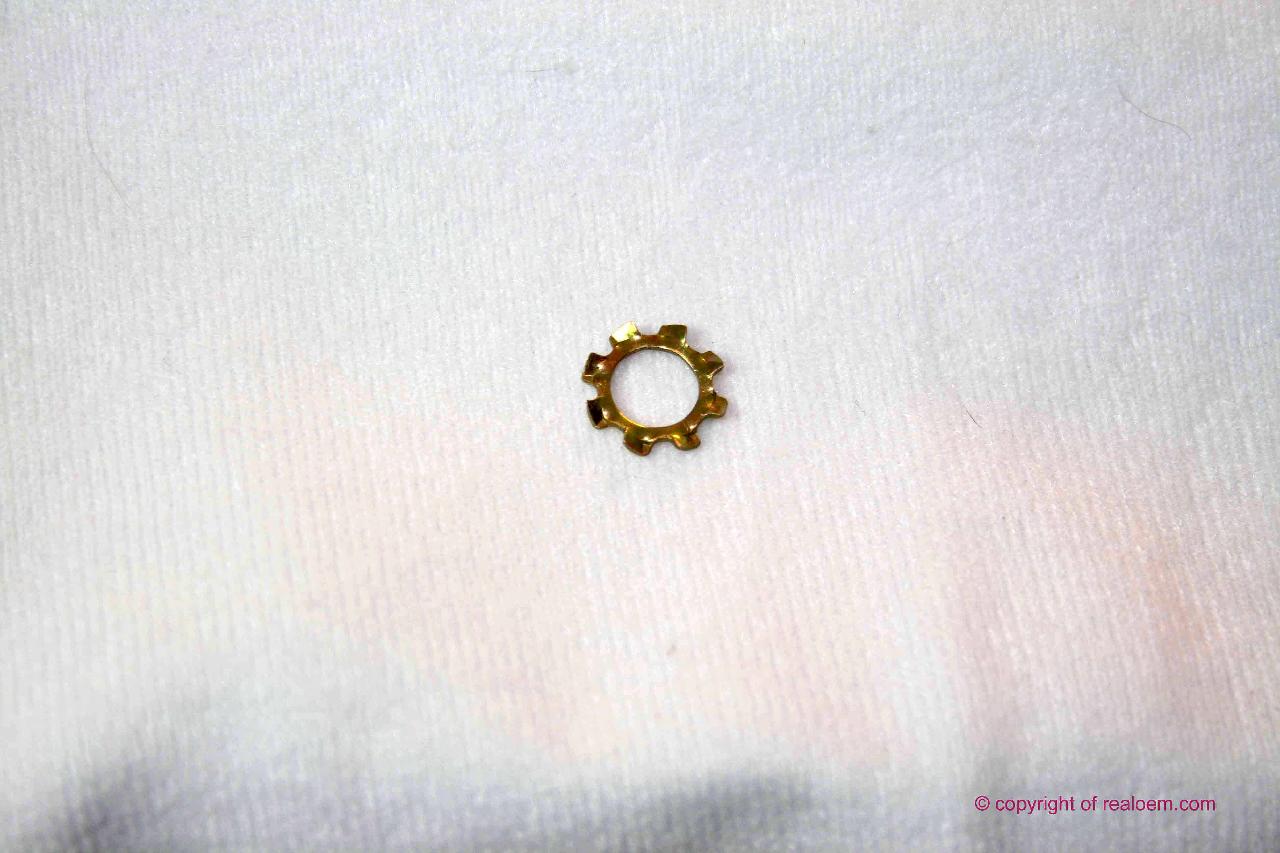

| 07 | 이붙이 와셔 | A6,4 | 2 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 08 | 육각머리볼트 | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 09 | 와셔 | A6,4-200HV-ZNS3 | 6 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 11 | 엠블렘 | D=70MM | 1 | 46637686746 | $12.79 | Shop at ECS Tuning | ||||
| 12 | 스티커 | SCHWARZ | 1 | 51142301516 | 단종 | Shop at ECS Tuning | ||||
| 12 | 스티커 | BLAU | 1 | 51142301610 | $19.54 | Shop at ECS Tuning |
주의
- ENDED = 이부품은 단종되었습니다
- 코어(고품)=부가된 고품가격(고품의 반품가능성)
