다양한 배선 홀더 for BMW 3 Series E36 320i

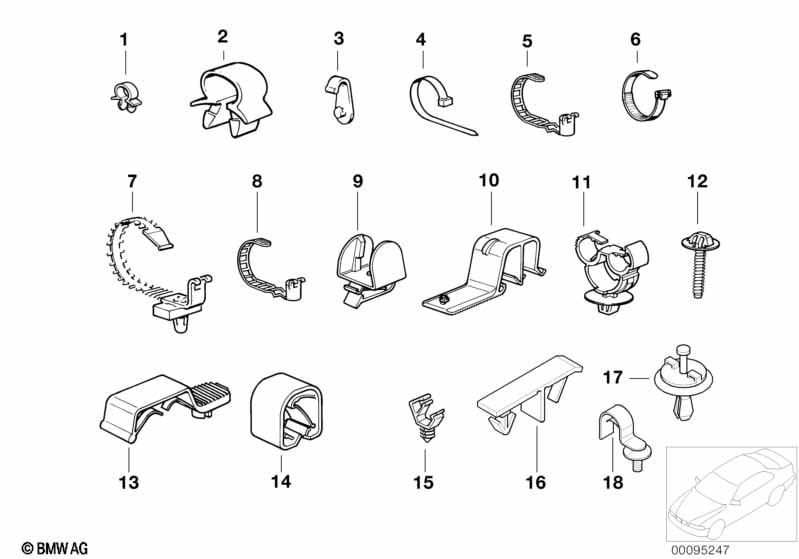

This 다양한 배선 홀더 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 라인 홀더 | D=10,8MM | X | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 02 | 배선 홀더 | D=12,8MM | X | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 03 | 배선 홀더 | X | 61131370742 | $1.83 | Shop at ECS Tuning | |||||
| 04 | 케이블 밴드 | L=200MM/B=3,6MM | X | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 04 | 케이블 밴드 | L=100MM/B=2,5MM | X | 61131372391 | $0.08 | Shop at ECS Tuning | ||||
| 05 | 케이블 밴드 | L=119MM | X | 61138357028 | Shop at ECS Tuning | |||||
| 06 | 케이블 밴드 | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 07 | 케이블 밴드 | X | 61131391721 | $1.77 | Shop at ECS Tuning | |||||
| 08 | 케이블 밴드 | L=119MM | X | 61138357028 | Shop at ECS Tuning | |||||
| 09 | 배선 홀더 | X | 61131393378 | $0.77 | Shop at ECS Tuning | |||||
| 10 | 배선 홀더 | X | 61131387089 | $0.35 | Shop at ECS Tuning | |||||
| 11 | 라인 홀더 2 x | X | 61138380213 | $0.35 | Shop at ECS Tuning | |||||
| 12 | 핀 | X | 51478126285 | $1.15 | Shop at ECS Tuning | |||||
| 13 | 배선 홀더 | X | 61131387066 | $0.35 | Shop at ECS Tuning | |||||
| 14 | 홀더 | X | 61131387626 | $0.57 | Shop at ECS Tuning | |||||
| 15 | 호스/배선 홀더 | X | 61138367273 | $0.35 | Shop at ECS Tuning | |||||
| 16 | 케이블 클립 | X | 61138355070 | $0.77 | Shop at ECS Tuning | |||||
| 17 | 배선 홀더 | X | 61138352970 | $0.37 | Shop at ECS Tuning | |||||
| 18 | 배선 홀더 | X | 61108236270 | $0.37 | 단종 | Shop at ECS Tuning |
주의
- ENDED = 이부품은 단종되었습니다
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i 다양한 배선 홀더?
- This technical diagram illustrates the 다양한 배선 홀더 within the 자동차,일렉트릭 group for the 3 Series E36 320i. It provides a detailed exploded view of the components, identifying key parts such as the 라인 홀더 (Part #64111364073).
- Which models use the hardware listed in this 다양한 배선 홀더?
- The hardware and components featured in the 다양한 배선 홀더 are specific to the 3 Series E36 320i. These technical specifications ensure that parts like the 라인 홀더 (64111364073) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 다양한 배선 홀더 assembly?
- Each item in the 다양한 배선 홀더 corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the 라인 홀더 by locating its position on the schematic, which then links to the official BMW part number 64111364073 for the 자동차,일렉트릭 section.
