다양한 램프 for BMW 5 Series E39 528i (2000)

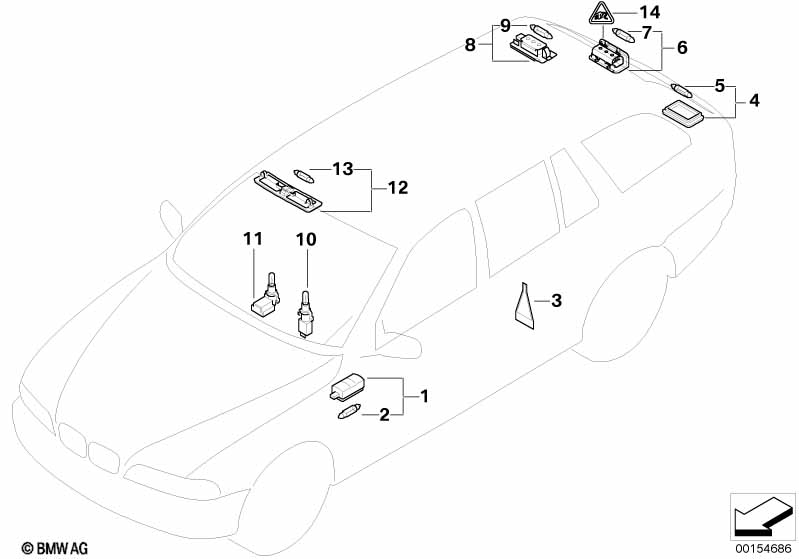

This 다양한 램프 technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 실내하부 조명등 | 4 | 63316963194 | $9.58 | Shop at ECS Tuning | |||||
| 02 | 전구 | 12V 5W | 4 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 03 | 반사등/리플렉스 호일 | 4 | 63318363847 | $1.45 | Shop at ECS Tuning | |||||
| 04 | 렌즈,번호판등용 | 2 | 51138236878 | $3.08 | Shop at ECS Tuning | |||||
| 05 | 전구 | 12V 5W | 2 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 트렁크리드에만 적합 | ||||||||||
| 06 | 트렁크룸등/트렁크리드 | 1 | 63316962569 | $11.40 | Shop at ECS Tuning | |||||
| 07 | 전구 | 12V 10W | 1 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 트렁크룸에만 적합 |
||||||||||
| 08 | 실내등 | SCHWARZ | 1 | 63312497577 | $53.12 | Shop at ECS Tuning | ||||
| 08 | 실내등 | BEIGE | 1 | 63318363264 | $53.12 | +대품 | Shop at ECS Tuning | |||
| 08 | 실내등 | GRAU | 1 | 63318363265 | $53.12 | Shop at ECS Tuning | ||||
| 09 | 전구 | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 10 | 램프 소켓,직선의,램프 포함 | ORANGE | 1 | 61138366595 | $7.12 | Shop at ECS Tuning | ||||
| 11 | 램프 소켓,구부러짐,램프 포함 | GLASKLAR | 2 | 61138352933 | $7.12 | Shop at ECS Tuning | ||||
| 11 | 램프 소켓,구부러짐,램프 포함 | ORANGE | 1 | 61138366593 | $7.12 | Shop at ECS Tuning | ||||
| 12 | 화장거울 램프 | SCHWARZ | 2 | 63312269512 | $32.68 | Shop at ECS Tuning | ||||
| 12 | 화장거울 램프 | GRAU | 2 | 63318360010 | $32.68 | Shop at ECS Tuning | ||||
| 12 | 화장거울 램프 | BEIGE | 2 | 63318360011 | $32.68 | Shop at ECS Tuning | ||||
| 13 | 전구 | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 14 | 유니버설-소켓 하우징,코딩되지 않았음 | 3 POL. | 2 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| 다음과 결합해서만 | ||||||||||
| -- | 소켓 접점 MQS, 케이블 포함 | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | 소켓 접점 MQS, 케이블 포함 | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
주의
- 코어(고품)=부가된 고품가격(고품의 반품가능성)
