전조등 for BMW 1502-2002tii 1802 (1973)

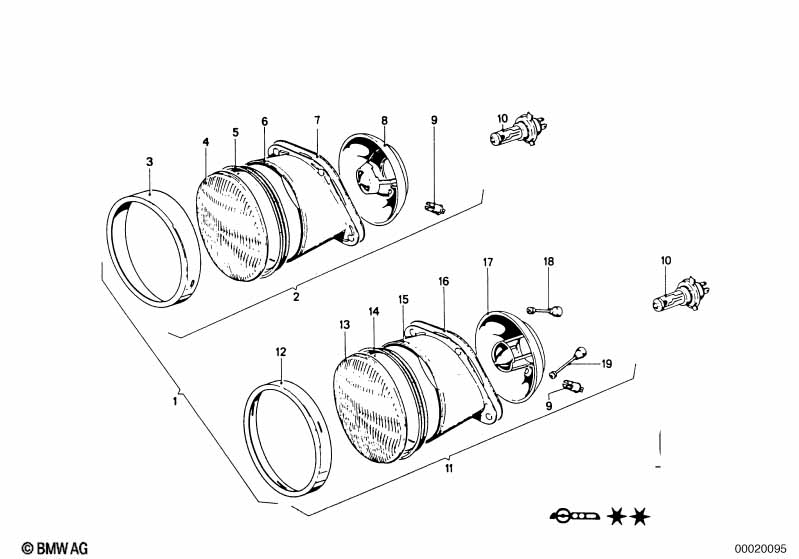

This 전조등 technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1802. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | 전조등 | H4 BOSCH | 2 | 08/1973 | 07/1977 | 63121357143 | $338.73 | Shop at ECS Tuning | ||
| 03 | 장식링 | BOSCH | 2 | 08/1973 | 07/1977 | 63121357149 | $34.24 | Shop at ECS Tuning | ||
| 04 | 렌즈 | BOSCH | 2 | 02/1962 | 07/1977 | 63121355002 | $43.25 | Shop at ECS Tuning | ||
| 05 | 씰 | BOSCH | 2 | 63128650131 | $7.92 | Shop at ECS Tuning | ||||
| 06 | 고정링 | BOSCH | 2 | 63121357189 | 단종 | Shop at ECS Tuning | ||||
| 07 | 씰 | BOSCH | 2 | 63128650136 | 단종 | Shop at ECS Tuning | ||||
| 08 | 리플렉터 | H4 BOSCH | 2 | 63121355003 | $90.40 | 단종 | Shop at ECS Tuning | |||
| 09 | 램프 소켓 | 2 | 62148680130 | $3.25 | Shop at ECS Tuning | |||||
| 10 | 전구 | H4 | 2 | 01/1966 | 07/1977 | 63121354619 | $13.63 | Shop at ECS Tuning | ||
| 11 | 전조등 | H4 HELLA | 2 | 08/1973 | 07/1977 | 63121357142 | $541.26 | 단종 | Shop at ECS Tuning | |
| 12 | 장식링 | HELLA | 2 | 08/1973 | 07/1977 | 63121357150 | $34.24 | 단종 | Shop at ECS Tuning | |
| 13 | 렌즈 | H4 HELLA | 2 | 02/1962 | 07/1977 | 63121354383 | $35.63 | Shop at ECS Tuning | ||
| 14 | 씰 | BOSCH | 2 | 63128650131 | $7.92 | Shop at ECS Tuning | ||||
| 15 | 씰 | HELLA | 2 | 63128650135 | 단종 | Shop at ECS Tuning | ||||
| 16 | 씰 | BOSCH | 2 | 63128650136 | 단종 | Shop at ECS Tuning | ||||
| 17 | 리플렉터 | H4 HELLA | 2 | 02/1962 | 07/1977 | 63121354384 | $142.25 | 단종, +대품 | Shop at ECS Tuning | |
| 18 | 조정볼트 | 2 | 63128650137 | 단종 | Shop at ECS Tuning | |||||
| 19 | 조정볼트 | 2 | 63128650138 | 단종 | Shop at ECS Tuning |
주의
- ENDED = 이부품은 단종되었습니다
- 코어(고품)=부가된 고품가격(고품의 반품가능성)
