다양한 램프 for BMW 7 Series F02 750Li

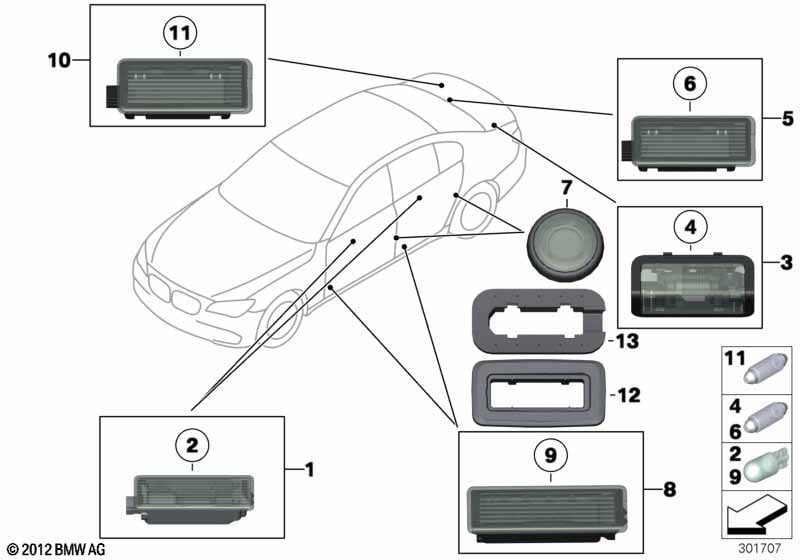

This 다양한 램프 technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 750Li. It includes part names, part numbers and all associated mounting hardware.
| 번호 | 설명 | 보충 | 수량 | 로 부터 | 까지 | 부품번호 | 가격 | 주의 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 실내등 | 5W TRÜB | 9 | 63316972605 | $11.92 | Shop at ECS Tuning | ||||
| 01 | 실내등 | 5W KLAR | 9 | 63316961999 | $5.65 | Shop at ECS Tuning | ||||
| 02 | 전구,수명이 긴 | 5W | 9 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 03 | 트렁크룸등/트렁크리드 | 1 | 11/2004 | 04/2017 | 63316962569 | $11.40 | Shop at ECS Tuning | |||
| 03 | 등화장치, 테일 게이트 | 1 | 10/2008 | 10/2018 | 63319185401 | Shop at ECS Tuning | ||||
| 04 | 전구 | 12V 10W | 1 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 05 | 실내등 | 10W | 1 | 63316962039 | $11.92 | Shop at ECS Tuning | ||||
| 06 | 전구 | 12V 10W | 1 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 07 | 리플렉터 | RUBIN | 4 | 51717161921 | $3.27 | Shop at ECS Tuning | ||||
| 12 | 홀딩 프레임, 차실하부 조명등, 뒤 | ANTHRAZIT | 2 | 63319130836 | $3.60 | Shop at ECS Tuning | ||||
| 12 | 홀딩 프레임, 차실하부 조명등, 뒤 | VENETOBEIGE | 2 | 63319165615 | Shop at ECS Tuning | |||||
| 13 | 서포트, 홀딩 프레임 | ANTHRAZIT | 2 | 63319130841 | $1.93 | Shop at ECS Tuning | ||||
| 13 | 서포트, 홀딩 프레임 | VENETOBEIGE | 2 | 63319165618 | Shop at ECS Tuning |
