BMW Performance-veerpootbrug, carbon for BMW 3 Series E90 LCI 325xi (2011)

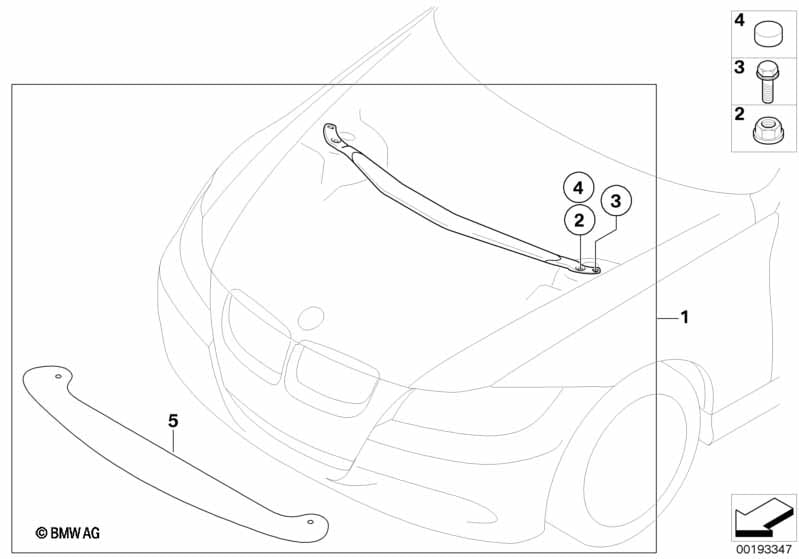

This BMW Performance-veerpootbrug, carbon technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attentie: De montagehandleiding (EBA) zit niet in de inbouwset. De EBA moet uit het Aftersales Assistance Portal (ASAP) worden geprint en aan de klant worden gegeven. Voor voertuigen met Wieldraagarm |
SZEDA=Nee |
||||||||
| 01 | Wieldraagarm | BMW PERFORMANCE | 1 | 07/2012 | 51710429377 | $1522.00 | Vervallen, +core | Shop at ECS Tuning | ||
| Voor voertuigen met Alleen voor japan |
L807A=Ja |
|||||||||
| 01 | Wieldraagarm | BMW PERFORMANCE | 1 | 03/2012 | 51710429377 | $1522.00 | Vervallen, +core | Shop at ECS Tuning | ||
| 02 | Zelfborgende moer | M8-8-ZNS3 | 2 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 02 | Zelfborgende moer | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Zeskantige Schroef | M10X20-10.9 | 2 | 07119904133 | $1.16 | Shop at ECS Tuning | ||||
| 04 | Kap | 2 | 51717896829 | $3.62 | Vervallen | Shop at ECS Tuning | ||||
| 05 | Schabloon | 1 | 01292153649 | Vervallen | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
