Alarmsysteem for BMW 5 Series E39 528i (1995)

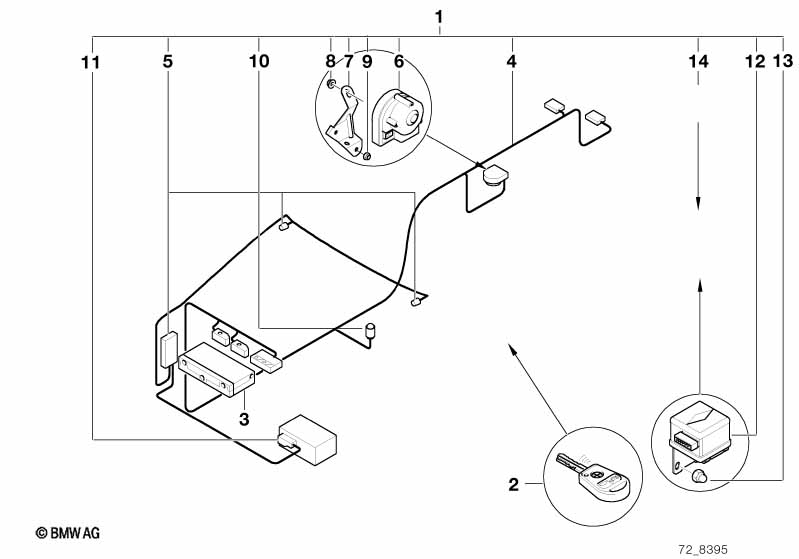

This Alarmsysteem technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Afstandsbediening | 433MHZ/O.A-DIV. | 1 | 09/1998 | 82919405593 | Vervallen, +core | Shop at ECS Tuning | |||
| 02 | Afstandsbediening | 433MHZ/M.A-DIV. | 1 | 09/1998 | 82919405594 | Vervallen, +core | Shop at ECS Tuning | |||
| 02 | Afstandsbediening | 315MHZ/M.A-DIV. | 1 | 09/1998 | 82919405602 | Vervallen | Shop at ECS Tuning | |||
| Voor modellen zonder Servotronic Alleen in combinatie met basismoduul high |
||||||||||
| 03 | Basismodul 3 | 1 | 09/1998 | 61356942042 | $460.84 | Vervallen | Shop at ECS Tuning | |||
| 04 | Kabelboom | 1 | 09/1998 | 82929405600 | Vervallen | Shop at ECS Tuning | ||||
| 05 | Ultrasoon moduul | INCL.2 SENSOREN | 1 | 09/1998 | 82929405603 | Vervallen, +core | Shop at ECS Tuning | |||
| 06 | SIirene met noodvoeding | 1 | 09/1998 | 65758383152 | $141.92 | Shop at ECS Tuning | ||||
| 07 | Bevestiging sirenc met noodvoeding | 1 | 09/1998 | 65758368269 | $5.13 | Shop at ECS Tuning | ||||
| 08 | Zeskantige moer met plaat | M6 ZNT | 1 | 09/1998 | 07149156628 | $0.25 | Shop at ECS Tuning | |||
| 09 | Kunststofmoer bout grove schroefdraad | M6 | 1 | 09/1998 | 16131176747 | $0.53 | Shop at ECS Tuning | |||
| 10 | Lichtdiode | 1 | 09/1998 | 82929405599 | Vervallen | Shop at ECS Tuning | ||||
| 11 | Schakelaar | 1 | 09/1998 | 61319119052 | $14.12 | Shop at ECS Tuning | ||||
| 12 | Inclinatie-indicator | 1 | 09/1998 | 65756923215 | $156.60 | Shop at ECS Tuning | ||||
| 13 | Dopmoer | M5 | 2 | 09/1998 | 51711934930 | $0.23 | Shop at ECS Tuning | |||
| 14 | Kabelband | L=292MM/B=4,8MM | X | 09/1998 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
