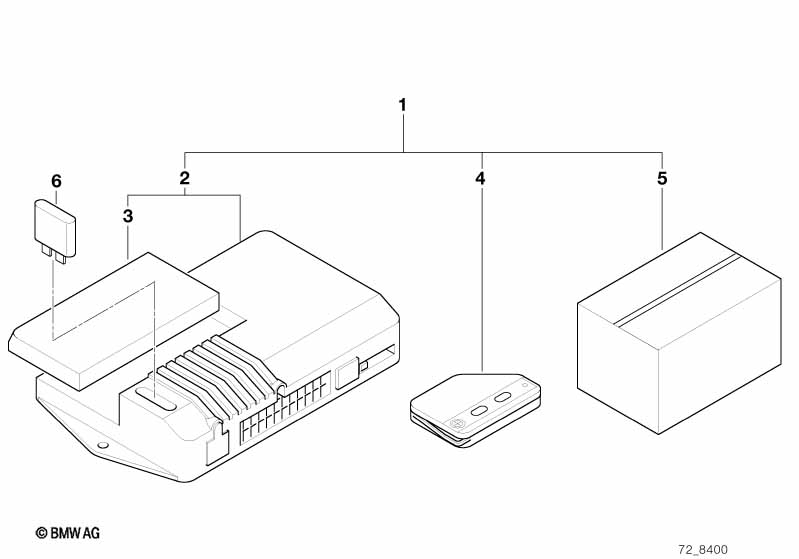

Afstandsbediening version 2 for BMW 3 Series E36 320i (1990)
This Afstandsbediening version 2 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Voor voertuigen met Alleen voor Duits |
L801A=Ja |
|||||||||
| 01 | Afstandsbediening | 1 | 82919404778 | Vervallen | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Code-element | 1 | 82929404779 | Vervallen | Shop at ECS Tuning | |||||
| -- | Meerv.startonderbreking | SYSTEM II | 1 | 82919404260 | $243.95 | Vervallen | Shop at ECS Tuning | |||
| Voor voertuigen met Alleen voor Duits |
L801A=Nee |
|||||||||
| 01 | Afstandsbediening | 1 | 82919404751 | Vervallen, +core | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Code-element | 1 | 82929404779 | Vervallen | Shop at ECS Tuning | |||||
| -- | Meerv.startonderbreking | SYSTEM II | 1 | 82919404260 | $243.95 | Vervallen, ABE 9788235 | Shop at ECS Tuning | |||
| 02 | Stuurtoestel | 1 | 82929404805 | Vervallen, +core | Shop at ECS Tuning | |||||
| Voor voertuigen met Alleen voor Duits |
L801A=Ja |
|||||||||
| 03 | Afstandsbediening | SYSTEM II-III | 1 | 82929402530 | $137.27 | Shop at ECS Tuning | ||||
| Voor voertuigen met Alleen voor Duits |
L801A=Nee |
|||||||||
| 03 | Afstandsbediening | SYSTEM II-III | 1 | 82929402875 | Vervallen, +core | Shop at ECS Tuning | ||||
| Voor voertuigen met Alleen voor frankrijk |
L813A=Ja |
|||||||||
| 03 | Afstandsbediening | 224MHZ,S.III | 1 | 82929404800 | Vervallen, +core | Shop at ECS Tuning | ||||
| Voor voertuigen met Alleen voor Duits |
L801A=Ja |
|||||||||
| 04 | Radiobediening | SYSTEM II-III | 1 | 02/1995 | 82929402531 | Shop at ECS Tuning | ||||
| 04 | Radiobediening | DESIGN 3 | 1 | 82929404882 | Vervallen | Shop at ECS Tuning | ||||
| Voor voertuigen met Alleen voor Duits |
L801A=Nee |
|||||||||
| 04 | Radiobediening | S.II-III,2KN. | 1 | 02/1995 | 82929402876 | Vervallen, +core | Shop at ECS Tuning | |||
| 04 | Radiobediening | DESIGN III | 1 | 82929404881 | Vervallen, +core | Shop at ECS Tuning | ||||
| Voor voertuigen met Alleen voor frankrijk |
L813A=Ja |
|||||||||
| 04 | Radiobediening | 224MHZ,S.III | 1 | 02/1995 | 82929404799 | Vervallen | Shop at ECS Tuning | |||
| 04 | Radiobediening | DESIGN III | 1 | 82929404881 | Vervallen, +core | Shop at ECS Tuning | ||||
| 05 | Kabelboom | 1 | 82929404806 | Vervallen | Shop at ECS Tuning | |||||
| 06 | Code-element | 1 | 82929404779 | Vervallen | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
- ABE = Allgemeine Betriebserlaubnis (Algemeen typegoedkeuring)
