Olievoorziening-Oliefilter for BMW 5 Series E39 528i (1996)

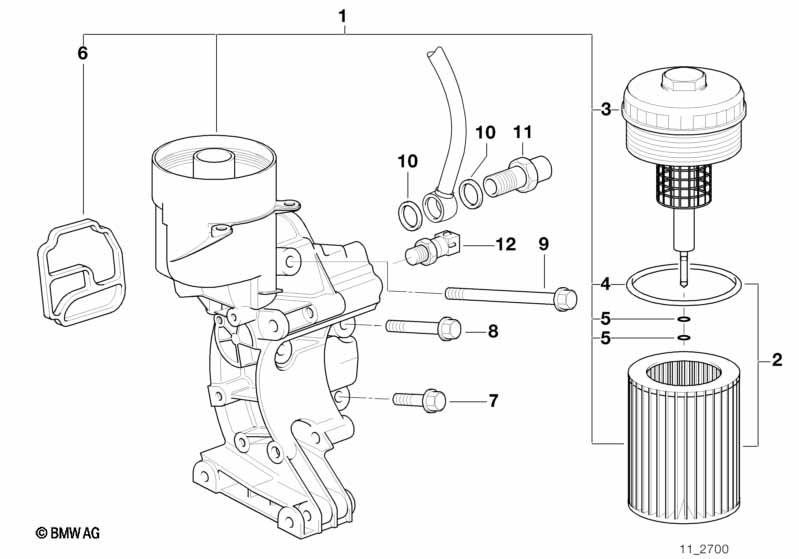

This Olievoorziening-Oliefilter technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Aggregaatdrager met Oliefilter | 1 | 09/1998 | 11421740001 | $345.60 | Shop at ECS Tuning | ||||
| 02 | Set oliefilterelement | 1 | 09/1998 | 11427512300 | $12.25 | Shop at ECS Tuning | ||||
| 03 | Oliefilterdeksel | 1 | 09/1998 | 11421744000 | $26.45 | Shop at ECS Tuning | ||||
| 04 | O-ring | 91X4 | 1 | 09/1998 | 11421741000 | $5.04 | Shop at ECS Tuning | |||
| 05 | O-ring | 7X2,5 | 2 | 09/1998 | 11427549573 | Shop at ECS Tuning | ||||
| 06 | Pakking | 1 | 09/1998 | 11421719855 | $6.08 | Shop at ECS Tuning | ||||
| 07 | Zeskantige schroef met schijf | M8X55-U1 | 3 | 03/1999 | 07119905391 | $1.27 | Shop at ECS Tuning | |||
| slechts passend bij extra-motor met motorcarter grijs gietijzer |
||||||||||
| 07 | Zeskantige Schroef | M8X50-U1-8.8 | 3 | 09/1998 | 07119904504 | $1.15 | Shop at ECS Tuning | |||
| 08 | Zeskantige schroef met schijf | M8X70-Z1-ZNS3 | 2 | 09/1998 | 07119906675 | Shop at ECS Tuning | ||||
| slechts passend bij extra-motor met motorcarter grijs gietijzer |
||||||||||
| 08 | Zeskantige schroef met schijf | M8X65-Z3 | 2 | 09/1998 | 07119913003 | $0.96 | Shop at ECS Tuning | |||
| 09 | Zeskantige schroef met schijf | M8X100-U1-8.8 | 1 | 09/1998 | 07119905403 | $1.69 | Shop at ECS Tuning | |||
| slechts passend bij extra-motor met motorcarter grijs gietijzer |
||||||||||
| 09 | Zeskantige schroef met schijf | M8X100-Z3 | 1 | 09/1998 | 07119912574 | $1.78 | Shop at ECS Tuning | |||
| 10 | Afdichtring | A14X18-AL | 2 | 09/1998 | 07119963200 | $0.38 | Shop at ECS Tuning | |||
| 11 | Banjobout | M14X1,5X26 | 1 | 09/1998 | 32416852469 | Shop at ECS Tuning | ||||
| 12 | Oliedrukschakelaar | M12X1,5 | 1 | 09/1998 | 12618611273 | Shop at ECS Tuning | ||||
