Motor ventilieren for BMW R45-R65LS..78-85 R45

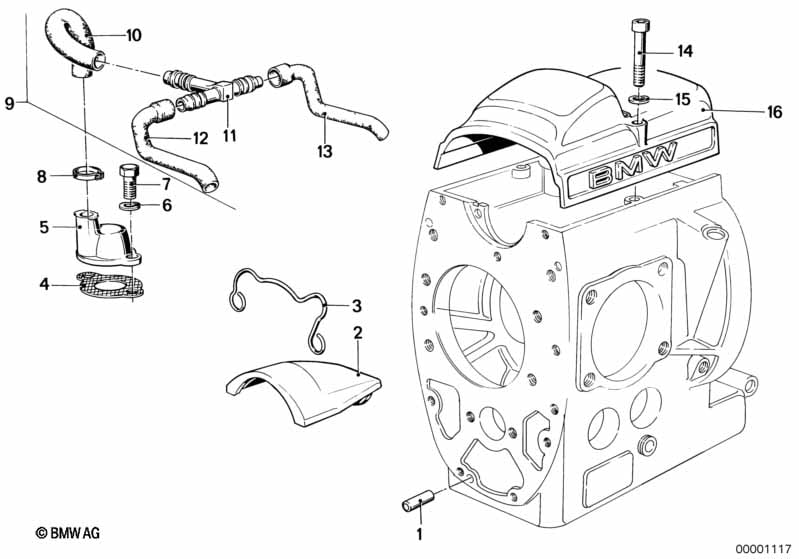

This Motor ventilieren technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| *FG R 65 USA 11/79 / R 45, R 45/N, R 65 Modell 81 |
||||||||||
| 01 | Spanstift | 6X16 | 1 | 07119941485 | $0.61 | Shop at ECS Tuning | ||||
| 02 | Deksel | 1 | 11141255793 | $24.80 | Shop at ECS Tuning | |||||
| 03 | Draadbeugel | 1 | 11141337171 | $12.50 | Shop at ECS Tuning | |||||
| 04 | Pakking | 1 | 11151338431 | $2.42 | Shop at ECS Tuning | |||||
| 05 | Ontluchtingsventiel | 1 | 11151335756 | $4.77 | Shop at ECS Tuning | |||||
| 06 | Veerring | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Cilinderschroef | M5X20-8.8 ZNS | 2 | 07119920057 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Slangklem | D=19MM | 1 | 11151460935 | $3.48 | Shop at ECS Tuning | ||||
| 09 | Onluchtingsslang | 1 | 11151335870 | Vervallen | Shop at ECS Tuning | |||||
| 10 | Onluchtingsslang | 1 | 11151335735 | $40.94 | Shop at ECS Tuning | |||||
| 11 | Verdeelstuk | 1 | 11611261818 | $1.62 | Vervallen | Shop at ECS Tuning | ||||
| 12 | Onluchtingsslang | 1 | 11151335734 | $19.41 | Shop at ECS Tuning | |||||
| 13 | Onluchtingsslang | 1 | 11151335734 | $19.41 | Shop at ECS Tuning | |||||
| 14 | Isa-schroef | M6X50-8.8-ZNNIV | 2 | 07129905539 | $0.78 | Shop at ECS Tuning | ||||
| 15 | Veerring zwart | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Onderzetterplaat | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 15 | Veerring | B6-ZNS3 | 2 | 07119904496 | $1.78 | Vervallen | Shop at ECS Tuning | |||
| 16 | Afdekkingskap | 1 | 11141335261 | $152.03 | Vervallen | Shop at ECS Tuning | ||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
