Stuuraandr.-stuurketting boven for BMW 5 Series G30 530e (2017)

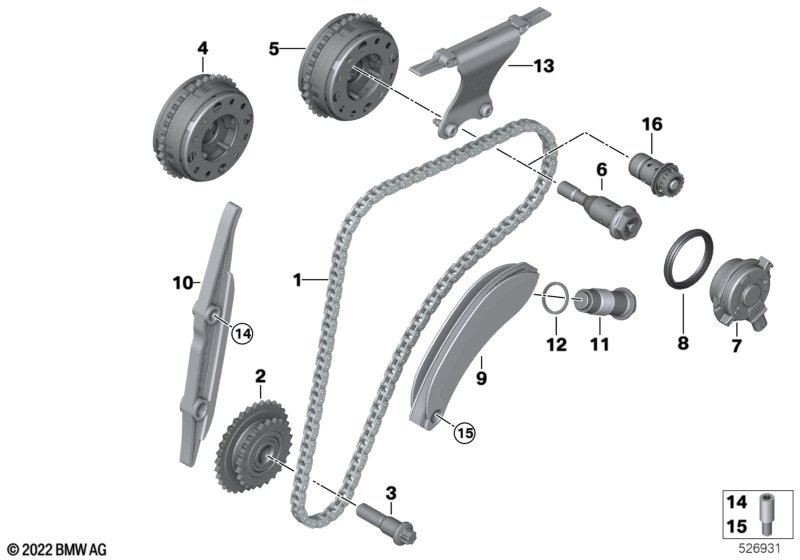

This Stuuraandr.-stuurketting boven technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Distributieketting | 1 | 11318648729 | Shop at ECS Tuning | ||||||
| 02 | Kettingwiel | 1 | 13528642165 | Shop at ECS Tuning | ||||||
| 03 | Lagerschroef | M12X1 | 1 | 13527617486 | Shop at ECS Tuning | |||||
| PuMA maatregel 64122020 in acht nemen Reparatiehandleiding in acht nemen. |
||||||||||
| 04 | Versteleenheid nokkenas inlaat | 1 | 07/2017 | 11368684920 | Shop at ECS Tuning | |||||
| 05 | Versteleenheid nokkenas uitlaat | 1 | 07/2017 | 11368684921 | Shop at ECS Tuning | |||||
| 07 | Actuator VANOS | 2 | 11367614288 | Shop at ECS Tuning | ||||||
| 08 | Afdichting | 2 | 11365A65AB5 | Shop at ECS Tuning | ||||||
| 09 | Spanstuk | 1 | 11317617472 | Shop at ECS Tuning | ||||||
| 10 | Sponning | 1 | 11317617489 | Shop at ECS Tuning | ||||||
| 11 | Kettingspanner | 1 | 11317617475 | Shop at ECS Tuning | ||||||
| 12 | Afdichtring | A22X27 | 1 | 11318599591 | Shop at ECS Tuning | |||||
| Bevestigingsbouten bij accessoires inbegrepen |
||||||||||
| 13 | Glijstuk | 1 | 11317617474 | Shop at ECS Tuning | ||||||
| 14 | Lagerpen cilinderkop | 2 | 11317797900 | Shop at ECS Tuning | ||||||
| 15 | Lagerpen carter | 1 | 13527797908 | Shop at ECS Tuning | ||||||
| PuMA maatregel 64122020 in acht nemen Reparatiehandleiding in acht nemen. |
||||||||||
| 16 | Centrale VANOS-klep | M21 | 2 | 07/2017 | 11368696446 | Shop at ECS Tuning | ||||
