Kabelboom, aanbouwdelen for BMW 3 Series E30 318i (1982)

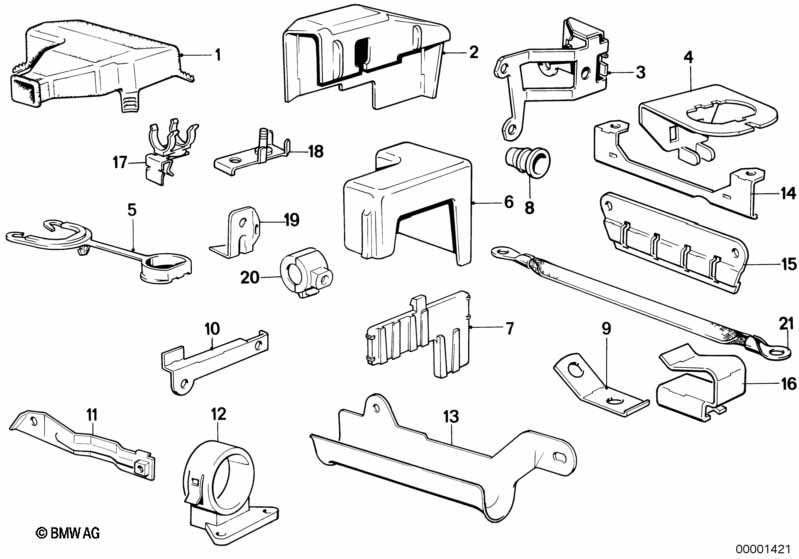

This Kabelboom, aanbouwdelen technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Afsluitkapje | 1 | 12521279703 | $10.07 | Vervallen | Shop at ECS Tuning | ||||
| 02 | Afsluitkapje | 1 | 12521284465 | $4.37 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Bevestiging diagnosestekker | 1 | 12521274665 | $4.57 | Vervallen | Shop at ECS Tuning | ||||
| 05 | Deksel | 1 | 12521286052 | $1.35 | Shop at ECS Tuning | |||||
| 06 | Afdekkap | 1 | 12521279603 | $15.80 | Vervallen | Shop at ECS Tuning | ||||
| 07 | Bevestiging | 1 | 12521279602 | $2.63 | Vervallen | Shop at ECS Tuning | ||||
| 08 | Rubbermof | 1 | 61311369343 | $1.93 | Shop at ECS Tuning | |||||
| 10 | Bevestiging | 1 | 12421289510 | $2.27 | Vervallen | Shop at ECS Tuning | ||||
| 12 | Bevestiging diagnosestekker | 1 | 12521710729 | $3.30 | Vervallen | Shop at ECS Tuning | ||||
| 13 | Bevestiging | 1 | 12521711228 | $4.93 | Vervallen | Shop at ECS Tuning | ||||
| 21 | Aardingsband | 1 | 12511285041 | $9.63 | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
