Relais motor/huis v.stuurtoestel for BMW 5 Series E34 540i (1992)

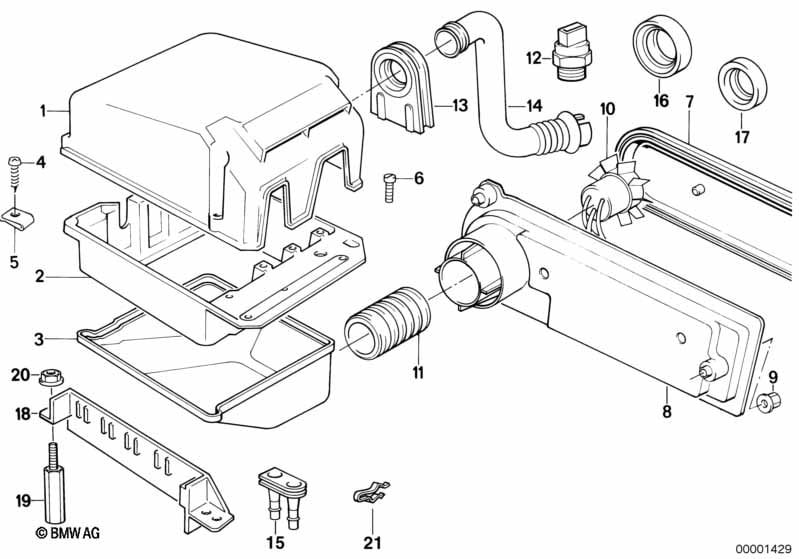

This Relais motor/huis v.stuurtoestel technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Deksel | 1 | 12901747122 | $43.92 | Vervallen | Shop at ECS Tuning | ||||
| 02 | Middendeel | 1 | 12901747121 | $57.87 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Onderste gedeelte | 1 | 12901716922 | $27.44 | Shop at ECS Tuning | |||||
| 04 | Verz.bolkopschroef | ST4,8X16-Z1 | 4 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Insteekmoer | M5 | 4 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 06 | Lenskopschroef | M6X16 | 4 | 07119906423 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Aanzuigleiding | 1 | 12901713436 | Shop at ECS Tuning | ||||||
| 08 | Aanzuigleiding | 1 | 12901713434 | Vervallen | Shop at ECS Tuning | |||||
| 09 | Kunststofmoer bout grove schroefdraad | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 10 | Luchtcompressor | 1 | 12901720343 | $145.46 | Shop at ECS Tuning | |||||
| 11 | Silent-bloc | 1 | 12901718979 | $2.56 | Shop at ECS Tuning | |||||
| 12 | Temperatuur-schakelaar | 44 CEL | 1 | 12631717443 | $31.13 | Shop at ECS Tuning | ||||
| 13 | Tule | 1 | 12901717087 | $7.82 | Shop at ECS Tuning | |||||
| 14 | Onluchtingsslang | 1 | 12901747478 | $9.12 | Vervallen | Shop at ECS Tuning | ||||
| 15 | Tule | 1 | 12901736818 | $2.82 | Vervallen | Shop at ECS Tuning | ||||
| 16 | Tule | E-BOX | 1 | 12901717046 | $2.82 | Vervallen | Shop at ECS Tuning | |||
| 17 | Tule | 1 | 12901717047 | $2.82 | Vervallen | Shop at ECS Tuning | ||||
| 18 | Steun | 1 | 12901747172 | $9.32 | Shop at ECS Tuning | |||||
| 19 | Afstandsstuk | 2 | 12632241474 | $3.85 | Vervallen | Shop at ECS Tuning | ||||
| 20 | Zeskantige moer met plaat | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 21 | Veer | 4 | 12901731968 | $1.43 | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
