Gasklephuis for BMW 2500-3.3Li 3.3Li

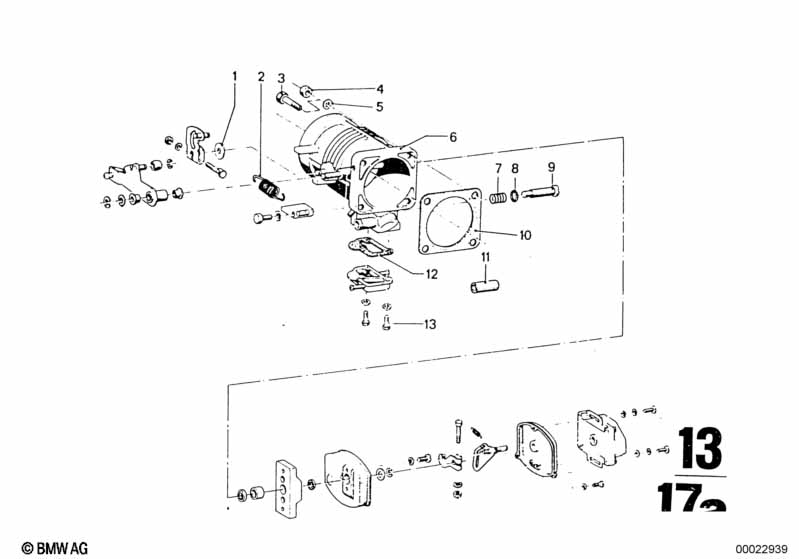

This Gasklephuis technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Trekveer | 2 | 09/1973 | 02/1977 | 13541261710 | $1.50 | Vervallen | Shop at ECS Tuning | ||
| 03 | Zeskantige Schroef | M8X30-ZN | 4 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 04 | Zeskantige moer met flens | M8 | 4 | 11611713432 | $0.43 | Vervallen | Shop at ECS Tuning | |||
| 05 | Veerring | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Gasklephuis | 1 | 09/1973 | 02/1977 | 13541273068 | $160.66 | Vervallen | Shop at ECS Tuning | ||
| 08 | O-ring | 9,25X1,78/FPM | 1 | 09/1973 | 02/1977 | 17211742635 | $0.80 | Shop at ECS Tuning | ||
| 09 | Smoorschroef | 1 | 09/1973 | 02/1977 | 13541267896 | Vervallen | Shop at ECS Tuning | |||
| 10 | Dichting zonder asbest | 1 | 13541256447 | $2.57 | Shop at ECS Tuning | |||||
| 12 | Dichting zonder asbest | 1 | 13549065690 | $1.80 | Shop at ECS Tuning | |||||
| 13 | Zeskantige Schroef | M5X20-8.8 ZNS | 2 | 07119913116 | $1.20 | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
