Brandstofleiding en drukregulateur for BMW 2500-3.3Li 3.3Li

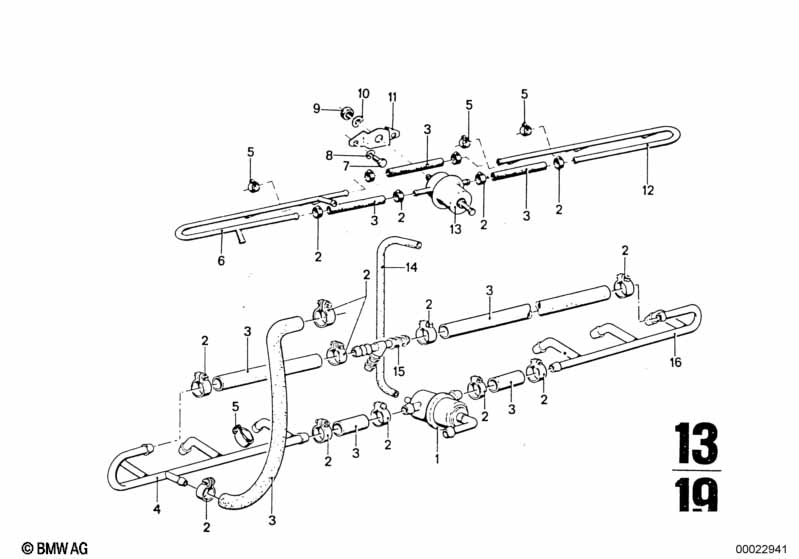

This Brandstofleiding en drukregulateur technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drukregulateur | 1 | 09/1973 | 02/1977 | 13531260789 | $128.16 | Vervallen | Shop at ECS Tuning | ||
| 02 | Slangklem | D=12MM | 10 | 13531257243 | $2.32 | Vervallen | Shop at ECS Tuning | |||
| 03 | Brandstoffslang | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 04 | Benzinebuis 1.-3.cylinder | 1 | 09/1973 | 02/1977 | 13531261081 | Vervallen | Shop at ECS Tuning | |||
| 05 | Slangklem | L12-15 | 6 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 14 | Vakuumslang zwart | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 15 | Verdeelstuk | 1 | 09/1973 | 02/1977 | 13311251059 | $1.00 | Shop at ECS Tuning | |||
| 16 | Benzinebuis 4.-6.cylinder | 1 | 09/1973 | 02/1977 | 13531261082 | $22.54 | Vervallen | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
