Stuurtoestel for BMW 2500-3.3Li 3.3Li

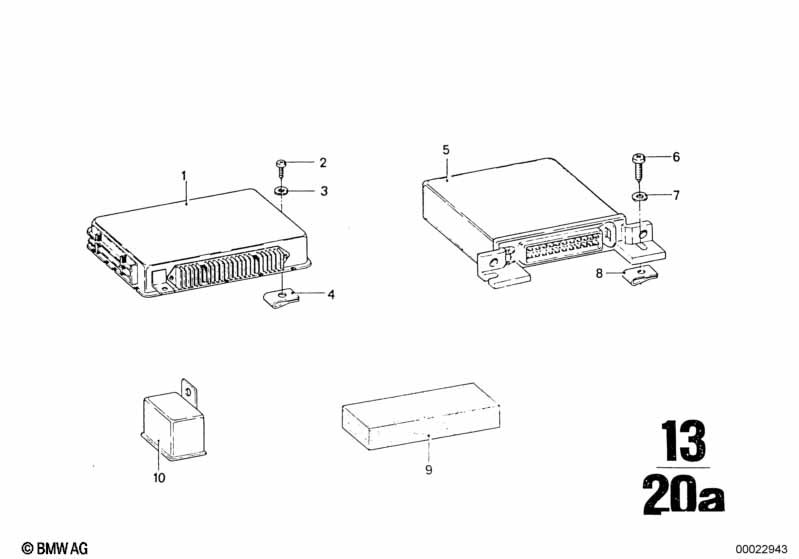

This Stuurtoestel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Verz.bolkopschroef | ST4,8X16 Z2 | 3 | 07119907789 | $0.13 | Vervallen | Shop at ECS Tuning | |||
| 03 | Veerring | B5 | 3 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Moer | ST4,8-13-ZNS3 | 3 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Stuurtoestel L-jetronic | 1 | 10/1975 | 02/1977 | 13611360888 | Shop at ECS Tuning | ||||
| 06 | Verz.bolkopschroef | ST6,3X19-Z1 | 2 | 07119906794 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Onderzetterplaat | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 08 | Moer | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 09 | Geluiddemping | 1 | 09/1973 | 02/1977 | 51481359411 | Vervallen | Shop at ECS Tuning | |||
| slechts passend bij | ||||||||||
| -- | Stuurtoestel L-jetronic | X | 09/1973 | 02/1977 | 13611360835 | $2563.17 | Vervallen | Shop at ECS Tuning | ||
| -- | Stuurtoestel L-jetronic | X | 09/1973 | 02/1977 | 13611360888 | Shop at ECS Tuning | ||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
