Luchtinlaatkanaal/HFM/Rubberbalg for BMW 7 Series E66 750Li (2004)

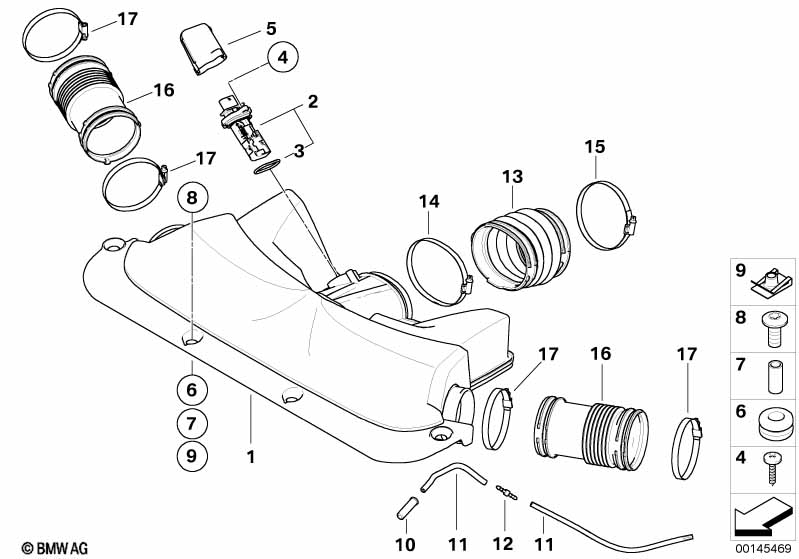

This Luchtinlaatkanaal/HFM/Rubberbalg technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 750Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Luchtinlaatkanaal | 1 | 13717541066 | $454.36 | Shop at ECS Tuning | |||||
| 02 | Hittefilmluchtmassameter | 1 | 13627566990 | $306.24 | Shop at ECS Tuning | |||||
| 03 | O-ring | 33X3 | 1 | 13627553932 | $2.48 | Shop at ECS Tuning | ||||
| 04 | Torxschroef | 5X18 | 2 | 06/2005 | 13627531817 | $0.60 | Shop at ECS Tuning | |||
| 04 | Torxschroef | 50X16 | 2 | 13717555679 | $0.63 | Shop at ECS Tuning | ||||
| 05 | Afdekking | 1 | 13717577710 | $5.82 | Shop at ECS Tuning | |||||
| 06 | Rubber tule | 4 | 13711702508 | $3.34 | Shop at ECS Tuning | |||||
| 07 | Bus | 4 | 13717525711 | $3.95 | Shop at ECS Tuning | |||||
| 08 | Lenskopschroef | 4 | 07147072901 | $0.53 | Shop at ECS Tuning | |||||
| 09 | C-clip moer | M6-ZNS3 | 4 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 10 | Kap | D=3,5MM | 1 | 11611437560 | $3.39 | Shop at ECS Tuning | ||||
| 11 | Vakuumslang zwart | 3,5X1,8 | X | 07/2005 | 11727545323 | $14.82 | Shop at ECS Tuning | |||
| 11 | Slang | X | 13717577758 | $5.50 | Shop at ECS Tuning | |||||
| 12 | Verbindingsstuk | 1 | 13717544098 | $1.64 | Shop at ECS Tuning | |||||
| 13 | Rubberbalg | 1 | 13717541069 | $38.88 | Shop at ECS Tuning | |||||
| 14 | Slangklem | 80-100X9 | 1 | 07119905469 | $1.82 | Shop at ECS Tuning | ||||
| 15 | Slangklem | L95-102 | 1 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| 16 | Rubberbalg | 2 | 13717541068 | $38.88 | Shop at ECS Tuning | |||||
| 17 | Slangklem | L83-90 | 4 | 07129952133 | $1.78 | Shop at ECS Tuning |
