Inspuit-installatie-ventiel/bijping for BMW 3 Series E30 325ix (1988)

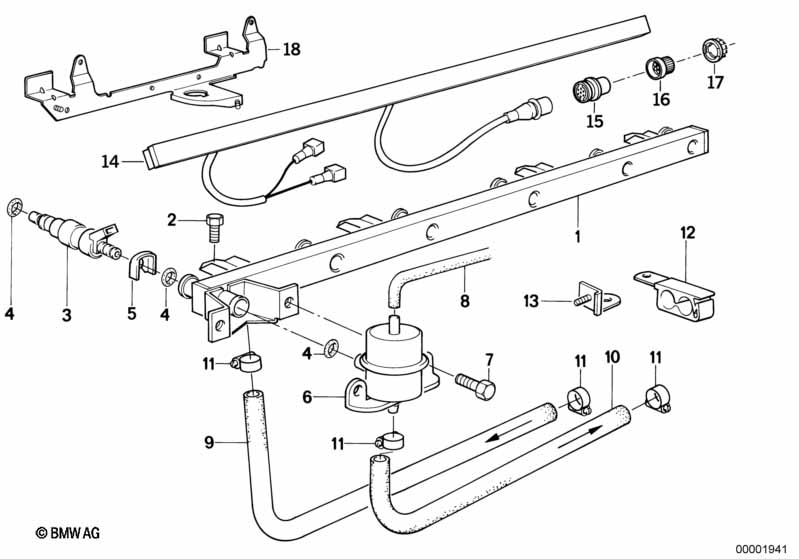

This Inspuit-installatie-ventiel/bijping technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Inspuitbuis | 1 | 13531719981 | $81.63 | Vervallen | Shop at ECS Tuning | ||||
| 02 | Zeskantige Schroef | M6X14-ZNNIV SI | 4 | 07119905964 | Shop at ECS Tuning | |||||
| 03 | Inspuitventiel | LUCAS | 6 | 13641731357 | $122.42 | Shop at ECS Tuning | ||||
| 04 | O-ring | 7,52X3,53 | X | 13641730767 | $3.75 | Shop at ECS Tuning | ||||
| 05 | Klem | 6 | 13531274729 | $0.67 | Shop at ECS Tuning | |||||
| 06 | Drukregulateur | 3,0BAR | 1 | 13531711541 | $56.93 | Shop at ECS Tuning | ||||
| 07 | Zeskantige schroef met schijf | M6X12-Z3-1 | 2 | 07119915033 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Vakuumslang zwart | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| SLECHTS PASSEND BIJ BRANDSTOFTOEVOERLEIDING |
||||||||||
| 09 | Brandstoffslang | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| SLECHTS PASSEND BIJ BRANDSTOFRETOURLEIDING |
||||||||||
| 10 | Brandstoffslang | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 11 | Slangklem | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 12 | Clip | 2 | 13311722326 | $1.73 | Shop at ECS Tuning | |||||
| 13 | Bevestiging brandstofleiding | 1 | 13311726942 | $2.85 | Shop at ECS Tuning | |||||
| 14 | Stekker-lijst inspuitventiel | 1 | 12511719606 | $174.90 | Vervallen | Shop at ECS Tuning | ||||
| 15 | Stiftdoos | 7-POL | 1 | 12521718125 | $5.60 | Shop at ECS Tuning | ||||
| 16 | Stekker | 7 POL. | 1 | 12521718126 | $5.57 | Shop at ECS Tuning | ||||
| 17 | Borgring | 7-POL | 1 | 12521718127 | $1.77 | Shop at ECS Tuning | ||||
| 18 | Bevestiging contaktdoos | 1 | 12521719724 | $12.00 | Vervallen | Shop at ECS Tuning | ||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
