Benzinetank for BMW 2500-3.3Li 3.3Li

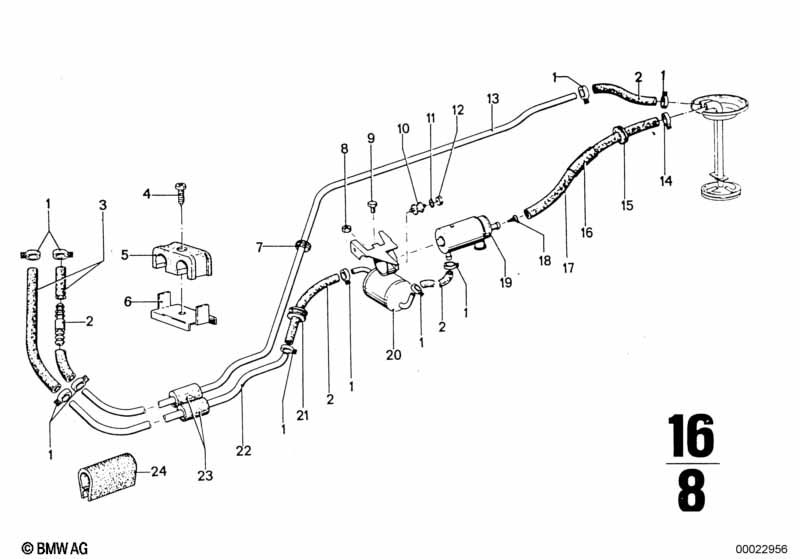

This Benzinetank technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Slangklem | L=9-12 | 5 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 03 | Brandstoffslang | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 07 | Tule | 1 | 16124780109 | $1.51 | Shop at ECS Tuning | |||||
| 08 | Zelfborgende zeskantige moer | M6-10 ZN | 1 | 02/1977 | 07129922705 | $0.27 | Vervallen | Shop at ECS Tuning | ||
| 08 | Zelfborgende zeskantige moer | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Zeskantige Schroef | M6X20-8.8-ZNS | 1 | 07119913016 | $0.60 | Vervallen | Shop at ECS Tuning | |||
| 10 | Silent-bloc | 3 | 16121177891 | $10.82 | Shop at ECS Tuning | |||||
| 12 | Zeskantige moer | M6-8-ZNNIV SI | 6 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Slangklem | L15-19 | 2 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 15 | Rubber tule | 2 | 16121107262 | $3.39 | Shop at ECS Tuning | |||||
| 17 | Brandstoffslang | 12X18 | X | 16121176440 | $15.25 | Shop at ECS Tuning | ||||
| 19 | Brandstofpomp | 1 | 16141178751 | $387.81 | Shop at ECS Tuning | |||||
| 20 | Bevestiging uitzettingsbak | 1 | 16121111541 | $136.33 | Shop at ECS Tuning | |||||
| 21 | Rubbermof | 1 | 16121105846 | $10.57 | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
