Benzinetank for BMW 2500-3.3Li 3.3Li

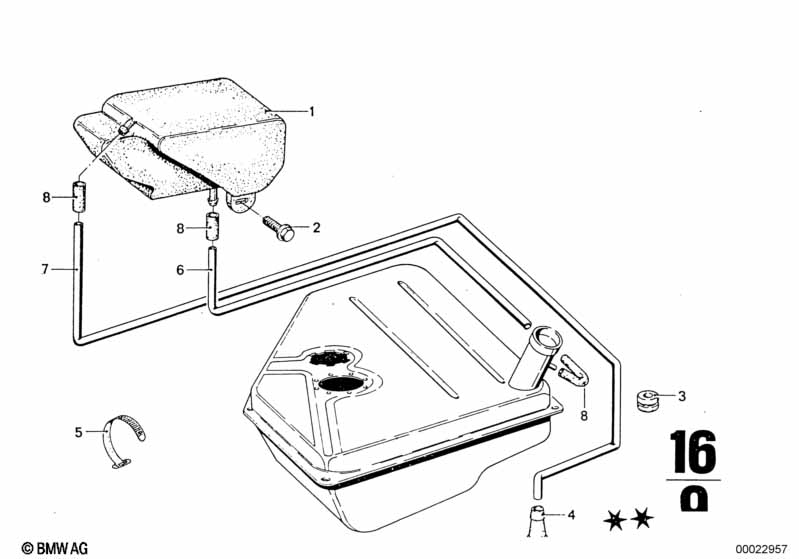

This Benzinetank technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansietank | 1 | 16111111351 | $87.50 | Vervallen | Shop at ECS Tuning | ||||
| 02 | Zeskantige schroef met schijf | M6X16-Z3-2 | 1 | 07119915021 | $0.47 | Shop at ECS Tuning | ||||
| 03 | Tule | 1 | 16121105890 | $3.63 | Vervallen | Shop at ECS Tuning | ||||
| 04 | Tule | 1 | 16121101014 | $1.21 | Vervallen | Shop at ECS Tuning | ||||
| 05 | Kabelband | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Ontluchtingsleiding | X | 16121108780 | $2.06 | Vervallen | Shop at ECS Tuning | ||||
| 07 | Ontluchtingsleiding | 1 | 16121114359 | Vervallen | Shop at ECS Tuning | |||||
| 08 | Brandstoffslang | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3Li Benzinetank?
- This technical diagram illustrates the Benzinetank within the Brandstofvoorziening group for the 2500-3.3Li 3.3Li. It provides a detailed exploded view of the components, identifying key parts such as the Expansietank (Part #16111111351).
- Which models use the hardware listed in this Benzinetank?
- The hardware and components featured in the Benzinetank are specific to the 2500-3.3Li 3.3Li. These technical specifications ensure that parts like the Expansietank (16111111351) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Benzinetank assembly?
- Each item in the Benzinetank corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3Li, you can identify the Expansietank by locating its position on the schematic, which then links to the official BMW part number 16111111351 for the Brandstofvoorziening section.
