Benzinetank/aanbouwdelen for BMW 7 Series G12 730LdX (2018)

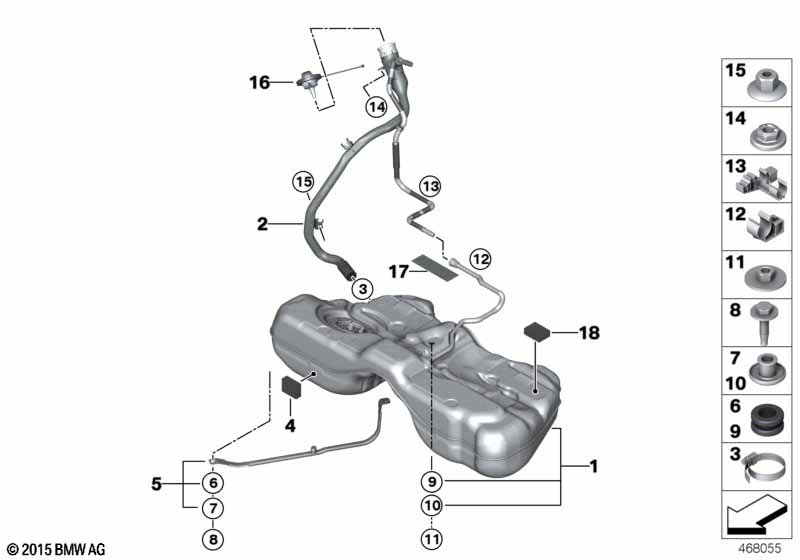

This Benzinetank/aanbouwdelen technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Benzinetank plastic | 1 | 16117411798 | Shop at ECS Tuning | ||||||
| 02 | Vulbuis kunststof | 1 | 16117356517 | Shop at ECS Tuning | ||||||
| 03 | Slangklem | L42-48 | 1 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 04 | Onderlegger | 45X35 MM | 2 | 01/2020 | 07147240137 | Shop at ECS Tuning | ||||
| 04 | Set dempingsstroken | 1 | 16119470920 | Shop at ECS Tuning | ||||||
| 05 | Klemband | 2 | 16117354282 | Shop at ECS Tuning | ||||||
| 06 | Rubber tule | 4 | 16111182454 | $0.93 | Shop at ECS Tuning | |||||
| 07 | Afstandsbus | 4 | 16117194458 | $3.23 | Shop at ECS Tuning | |||||
| 08 | Zeskantige Schroef | M8X30-PF-U2-8.8 | 4 | 07119906672 | Shop at ECS Tuning | |||||
| 09 | Rubber tule | 1 | 16111182609 | $1.13 | Shop at ECS Tuning | |||||
| 10 | Afstandsbus | 1 | 16117248837 | Shop at ECS Tuning | ||||||
| 11 | Zeskantige moer met plaat | M8-8.8-ZNS3 | 1 | 07147204294 | Shop at ECS Tuning | |||||
| 12 | Kabelklem | D18 | 3 | 16131183931 | $1.08 | Shop at ECS Tuning | ||||
| 13 | Clip | 2 | 16127407367 | Shop at ECS Tuning | ||||||
| 14 | Zelfborgende zeskantige moer | M6 | 2 | 01/2021 | 07147186111 | Shop at ECS Tuning | ||||
| 14 | Zelfborgende zeskantige moer | M6 | 2 | 07148842267 | Shop at ECS Tuning | |||||
| 15 | Kunststofmoer bout grove schroefdraad | 2 | 16131183133 | $0.37 | Shop at ECS Tuning | |||||
| 16 | Tankdop | 1 | 16117482901 | Shop at ECS Tuning | ||||||
| 17 | Strip dempingsmateriaal | 60X30 MM | 1 | 16117297317 | Shop at ECS Tuning | |||||
| 18 | Onderlegger | 45X36X12 MM | 5 | 16117305657 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 730LdX Benzinetank/aanbouwdelen?
- This technical diagram illustrates the Benzinetank/aanbouwdelen within the Brandstofvoorziening group for the 7 Series G12 730LdX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Benzinetank plastic (Part #16117411798).
- Which models use the hardware listed in this Benzinetank/aanbouwdelen?
- The hardware and components featured in the Benzinetank/aanbouwdelen are specific to the 7 Series G12 730LdX produced during 2018. These technical specifications ensure that parts like the Benzinetank plastic (16117411798) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Benzinetank/aanbouwdelen assembly?
- Each item in the Benzinetank/aanbouwdelen corresponds to the numbered list below the illustration. For the 7 Series G12 730LdX, you can identify the Benzinetank plastic by locating its position on the schematic, which then links to the official BMW part number 16117411798 for the Brandstofvoorziening section.
