Uitlaatsysteem met katalysator for BMW 5 Series E34 535i (1988)

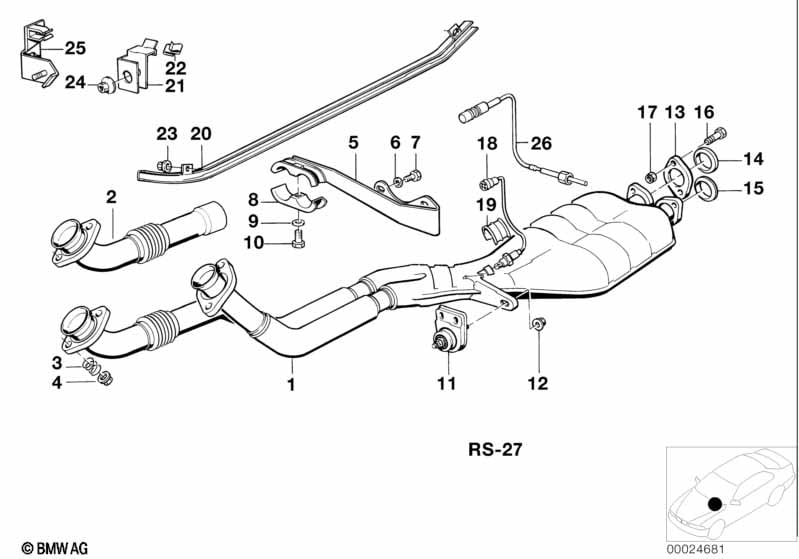

This Uitlaatsysteem met katalysator technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | AT-uitlaatpijp katalysator | 1 | 11761728972 | $1674.75 | Vervallen | Shop at ECS Tuning | ||||
| 02 | Uitlaatpijp | 1 | 18301437358 | $161.88 | Shop at ECS Tuning | |||||
| Voor voertuigen met Katalysator |
=Ja |
|||||||||
| 03 | Drukveer | 4 | 11761716668 | $5.81 | Shop at ECS Tuning | |||||
| 04 | Zeskantige moer met flens | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 11 | Bevestiging | 1 | 11761707417 | $107.45 | Shop at ECS Tuning | |||||
| 12 | Zeskantige moer met plaat | M8 | 4 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 13 | Flens | 1 | 18111712070 | $15.61 | Shop at ECS Tuning | |||||
| 14 | Afdichtring | 50MM | 1 | 18111723532 | Shop at ECS Tuning | |||||
| 15 | Afdichtring | 47MM | 1 | 18111175311 | $8.37 | Shop at ECS Tuning | ||||
| 16 | Zeskantige Schroef | M8X55-8.8 | 4 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 17 | Zeskantige moer met flens | M8 | 4 | 18307620549 | Shop at ECS Tuning | |||||
| 18 | Lambdasonde | L=1520MM | 1 | 11781720537 | $215.65 | SI 120396125 | Shop at ECS Tuning | |||
| 19 | Beschermplaat | 1 | 11781710590 | $33.49 | Vervallen, +core | Shop at ECS Tuning | ||||
| 20 | Geleiding | 1 | 11781738601 | $26.54 | Shop at ECS Tuning | |||||
| 21 | Bevestiging | 1 | 11781716554 | $2.37 | Shop at ECS Tuning | |||||
| 22 | Kabelklem | 1 | 07149149842 | $0.87 | Shop at ECS Tuning | |||||
| 23 | Kunststofmoer bout grove schroefdraad | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 24 | Drukknop | 1 | 17111709419 | $0.33 | Shop at ECS Tuning | |||||
| 25 | Bevestiging | 1 | 11781722018 | $3.52 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
- SI = Service Information
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
