Uitlaatsysteem for BMW 2500-3.3Li 3.3Li

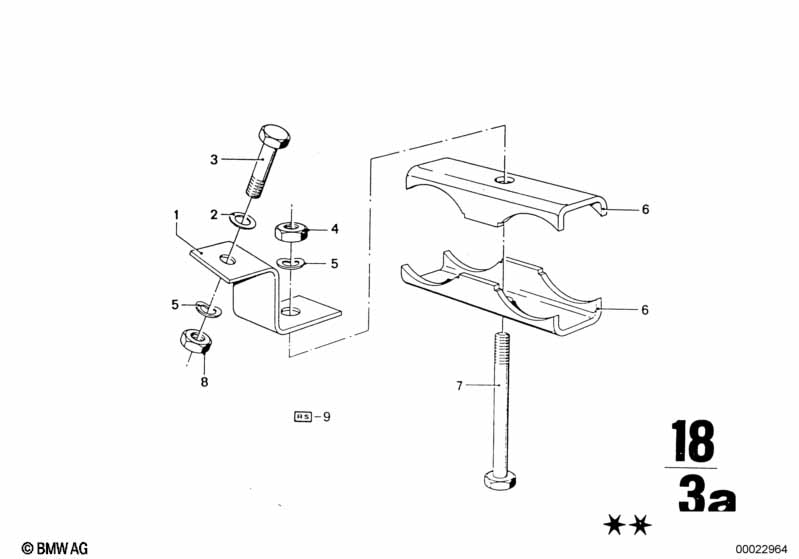

This Uitlaatsysteem technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hoek | 1 | 18211245931 | $3.11 | Shop at ECS Tuning | |||||
| 01 | Hoek | 1 | 18211245931 | $3.11 | Shop at ECS Tuning | |||||
| 02 | Onderzetterplaat | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 02 | Onderzetterplaat | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 03 | Zeskantige Schroef | M8X30-ZN | 1 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 03 | Zeskantige Schroef | M8X30-ZN | 1 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 04 | Zeskantige moer met plaat | M8 | 1 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 04 | Zeskantige moer met plaat | M8 | 1 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Veerring | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Veerring | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Pijpklem | 2 | 18211246379 | $5.37 | Shop at ECS Tuning | |||||
| 06 | Pijpklem | 2 | 18211246379 | $5.37 | Shop at ECS Tuning | |||||
| 07 | Zeskantige Schroef | M8X80 | 1 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| 07 | Zeskantige Schroef | M8X80 | 1 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| 08 | Zeskantige moer | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Zeskantige moer | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Reparatie set uitlaatophangingsdelen | 1 | 10/1975 | 02/1977 | 18211246095 | Vervallen | Shop at ECS Tuning | |||
| 09 | Reparatie set uitlaatophangingsdelen | 1 | 10/1975 | 02/1977 | 18211246095 | Vervallen | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
