Koppeling for BMW 4 Series F32 428iX (2015)

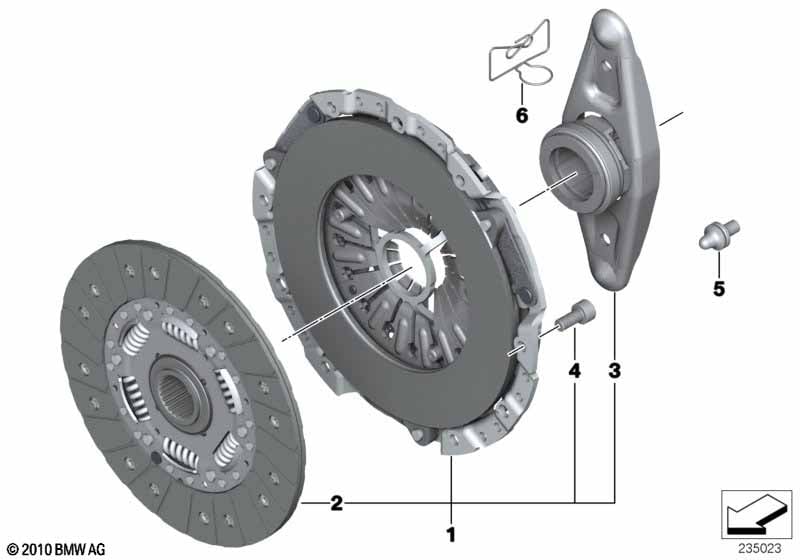

This Koppeling technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 428iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Voor voertuigen met Automatische transmissie en Sport aut. transmissie en Automaat met schakelpaddels |
S205A=Nee S2TBA=Nee S2TEA=Nee |
||||||||
| 01 | Set koppeling | D=240MM | 1 | 21208631999 | Shop at ECS Tuning | |||||
| 03 | Ontkoppelingsmoduul | 1 | 21517564027 | $75.34 | Shop at ECS Tuning | |||||
| 04 | Cilinderschroef micro-ingekapseld | M8X18-10.9-ZNS3 | 6 | 21207548052 | $0.48 | Shop at ECS Tuning | ||||
| 05 | Kogelpen | H=20MM | 1 | 21511223328 | $1.17 | Shop at ECS Tuning | ||||
| 06 | Veerbeugel | 1 | 21517570284 | $4.50 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series F32 428iX Koppeling?
- This technical diagram illustrates the Koppeling within the Koppeling group for the 4 Series F32 428iX produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Set koppeling (Part #21208631999).
- Which models use the hardware listed in this Koppeling?
- The hardware and components featured in the Koppeling are specific to the 4 Series F32 428iX produced during 2015. These technical specifications ensure that parts like the Set koppeling (21208631999) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Koppeling assembly?
- Each item in the Koppeling corresponds to the numbered list below the illustration. For the 4 Series F32 428iX, you can identify the Set koppeling by locating its position on the schematic, which then links to the official BMW part number 21208631999 for the Koppeling section.
