Voorasdrager 4-wiel for BMW 5 Series G30 M550iX (2015)

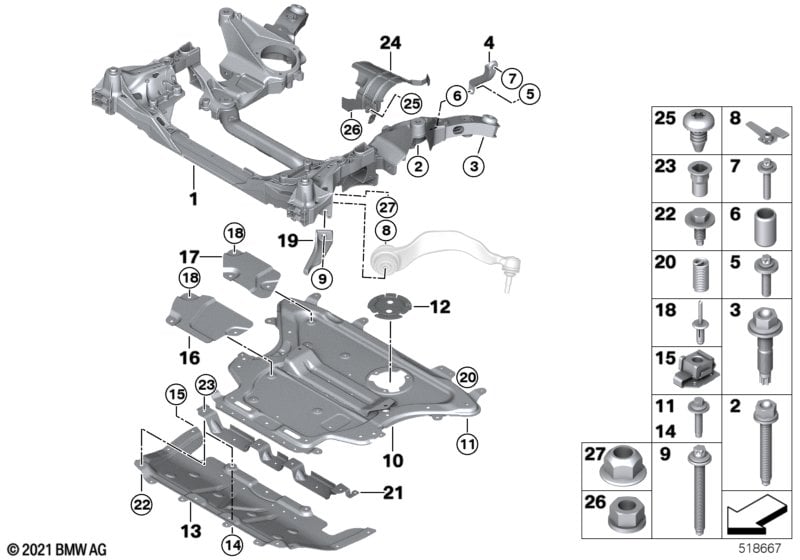

This Voorasdrager 4-wiel technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 M550iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Voorasdrager | 1 | 31106887340 | Shop at ECS Tuning | ||||||
| 02 | Zeskantige schroef met schijf | M12X96X1.5 | 4 | 31106872062 | Shop at ECS Tuning | |||||
| 03 | Zeskantige schroef met schijf | M14X54X1.5 | 2 | 31106872063 | Shop at ECS Tuning | |||||
| 04 | Stang motorsteun rechts | 1 | 31106861198 | Shop at ECS Tuning | ||||||
| slechts in combinatie met | ||||||||||
| -- | Beschermfoelie | 2 | 07147210555 | Shop at ECS Tuning | ||||||
| 05 | Torx-bout met plaat | M8X34 | 1 | 31106866494 | Shop at ECS Tuning | |||||
| 06 | Draadbus | M8X16-A2 | 1 | 07129908514 | Shop at ECS Tuning | |||||
| 07 | Torx-bout met plaat | M8X45-10.9 | 1 | 31106866496 | Shop at ECS Tuning | |||||
| 08 | Clipmoer rechts | 1 | 10/2021 | 31106867562 | Vervallen | Shop at ECS Tuning | ||||
| 08 | Zelfborgende moer | M14X1,5-10 ZNS3 | 1 | 10/2021 | 33306760349 | $1.33 | Shop at ECS Tuning | |||
| 09 | Torxbout met kraag | M14X137X1.5 | 2 | 31106871189 | Shop at ECS Tuning | |||||
| 10 | Versterkingsplaat zonder dwarsstang | 1 | 31106887546 | Shop at ECS Tuning | ||||||
| 11 | Zeskantige schroef met schijf | M8X40 | 12 | 31106870648 | Shop at ECS Tuning | |||||
| 19 | Crash hendel links | 1 | 31126863103 | Shop at ECS Tuning | ||||||
| 19 | Crash hendel rechts | 1 | 31126863104 | Shop at ECS Tuning | ||||||
| 20 | Helicoil-schroefdraadbus | M8X20-A2 | 1 | 31106868376 | Shop at ECS Tuning | |||||
| 27 | Zelfborgende moer | M14X1,5-10 ZNS3 | 2 | 33306760349 | $1.33 | Shop at ECS Tuning | ||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
