Hydrostuurdrijfwerk for BMW 2500-3.3Li 3.3Li

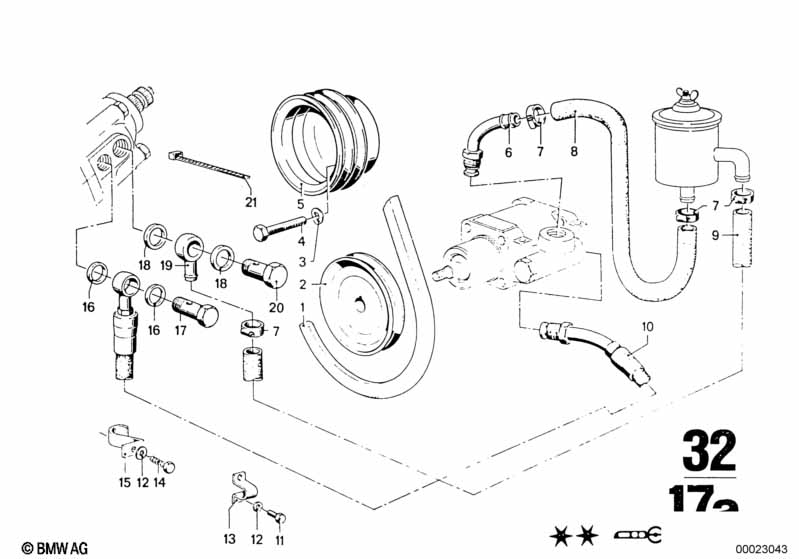

This Hydrostuurdrijfwerk technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Voor voertuigen met Hydr.bekr.stuur |
=Ja |
|||||||||
| 01 | V-riem | 9,5 X 1075 | 1 | 05/1971 | 02/1977 | 32411268687 | $22.83 | Shop at ECS Tuning | ||
| 01 | V-riem | 9,5X900 | 1 | 10/1973 | 02/1977 | 32421711067 | Shop at ECS Tuning | |||
| 02 | Poelie | 1 | 10/1973 | 02/1977 | 32411258275 | $63.70 | Vervallen | Shop at ECS Tuning | ||
| 03 | Onderzetterplaat | A8,4 | 8 | 24111690120 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Zeskantige Schroef | M8X16-10.9-PHR | 8 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Poelie | 124MM | 1 | 11211258274 | $60.68 | Shop at ECS Tuning | ||||
| 06 | Aansluitelement | S FORM | 1 | 32411121531 | $39.90 | Vervallen | Shop at ECS Tuning | |||
| 06 | Aansluitelement | L FORM | 1 | 10/1973 | 02/1977 | 32411117545 | $26.23 | Shop at ECS Tuning | ||
| 07 | Slangklem | L18-24 | 4 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Slang | 16X22MM | X | 32411131545 | $45.93 | Shop at ECS Tuning | ||||
| 09 | Slang | 16X22MM | X | 32411131545 | $45.93 | Shop at ECS Tuning | ||||
| 10 | Drukslang | 1 | 10/1973 | 02/1977 | 32411117566 | $96.17 | Vervallen | Shop at ECS Tuning | ||
| 11 | Zeskantige Schroef | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 12 | Veerring | B6 | 3 | 07119932072 | $0.09 | Vervallen | Shop at ECS Tuning | |||
| 13 | Klem | 1 | 32411104349 | Vervallen | Shop at ECS Tuning | |||||
| 14 | Snijschroef | AM6X12 | 2 | 07119918412 | $0.30 | Shop at ECS Tuning | ||||
| 15 | Klem | 1X22 | 2 | 07119977248 | Shop at ECS Tuning | |||||
| 16 | Afdichtring | A14X18-CU | 2 | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 17 | Banjobout | M14X1,5X26 | 1 | 32416852469 | Shop at ECS Tuning | |||||
| 18 | Afdichtring | A18X22-CU | 2 | 07119963308 | $0.25 | Shop at ECS Tuning | ||||
| 19 | Ringsteun | 1 | 32411124690 | Vervallen | Shop at ECS Tuning | |||||
| 20 | Banjobout | M18X32 | 1 | 32411117183 | $7.53 | Vervallen | Shop at ECS Tuning | |||
| 21 | Draadband met steun | Ø=7,7 / L=200 | 1 | 61136924664 | $0.55 | Shop at ECS Tuning | ||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
