Oliehuis / Onderdelen for BMW 3 Series E91 330d

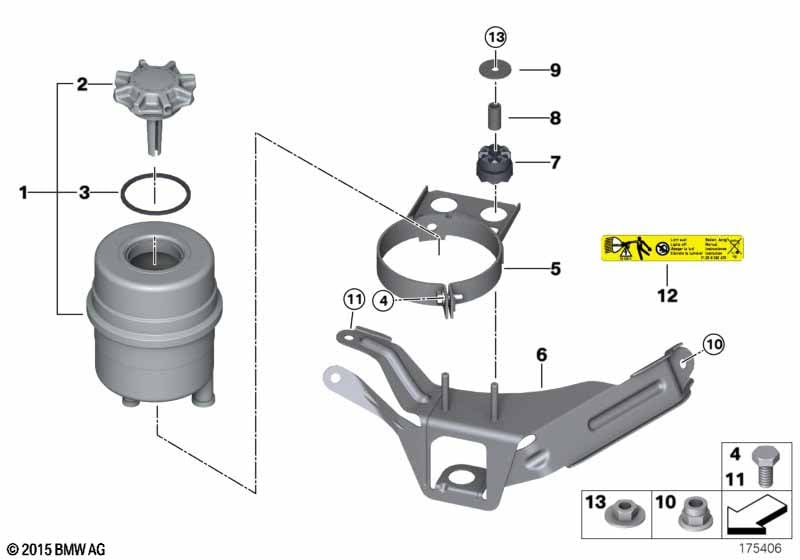

This Oliehuis / Onderdelen technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 330d. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Voor voertuigen met CO2 omvang en Actieve besturing |
S1CBA=Nee S217A=Nee |
|||||||||
| 01 | Oliehuis | CHF 11.S | 1 | 32416851217 | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Label, oliehuis-stuurbekrachtigingspomp | ATF | 1 | 71246798132 | Shop at ECS Tuning | |||||
| 02 | Deksel | CHF 11.S | 1 | 32416851332 | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Label, oliehuis-stuurbekrachtigingspomp | ATF | 1 | 71246798132 | Shop at ECS Tuning | |||||
| 03 | Afdichtring | 1 | 32411128333 | $2.38 | Shop at ECS Tuning | |||||
| 04 | Zeskantige schroef met schijf | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Bevestiging oliehuis | 1 | 32411094917 | $6.42 | Shop at ECS Tuning | |||||
| 06 | Bevestiging oliehuis | 1 | 32416765408 | Shop at ECS Tuning | ||||||
| 07 | Silent-bloc | 2 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 08 | Afstandsbus | ZNS3 | 2 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| Voor voertuigen met CO2 omvang en Actieve besturing vervallen |
S1CBA=Nee S217A=Nee |
|||||||||
| 09 | Onderzetterplaat | 6,4X25X1,5 | 2 | 04/2008 | 07146977329 | $0.64 | Shop at ECS Tuning | |||
| Voor voertuigen met CO2 omvang en Actieve besturing |
S1CBA=Nee S217A=Nee |
|||||||||
| 10 | Zeskantige moer | M6-8-ZNS3 | 1 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
| 11 | Zeskantige schroef met schijf | M6X14-U1-8.8 | 2 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| Voor voertuigen met Uitvoering voor koude landen |
S842A=Ja |
|||||||||
| 12 | Label, oliehuis-stuurbekrachtigingspomp | CHF 11.S | 1 | 03/2011 | 71212122171 | $2.78 | Shop at ECS Tuning | |||
| Voor voertuigen met CO2 omvang en Actieve besturing |
S1CBA=Nee S217A=Nee |
|||||||||
| 13 | Zeskantige moer | M6-8-ZNS3 | 2 | 04/2008 | 07119905128 | $0.44 | Shop at ECS Tuning | |||
| 13 | Zeskantige moer met plaat | M6 | 2 | 07147155614 | $0.91 | Shop at ECS Tuning | ||||
