Oliereservoir/losse delen/Actieve bestur for BMW 3 Series E91 330d

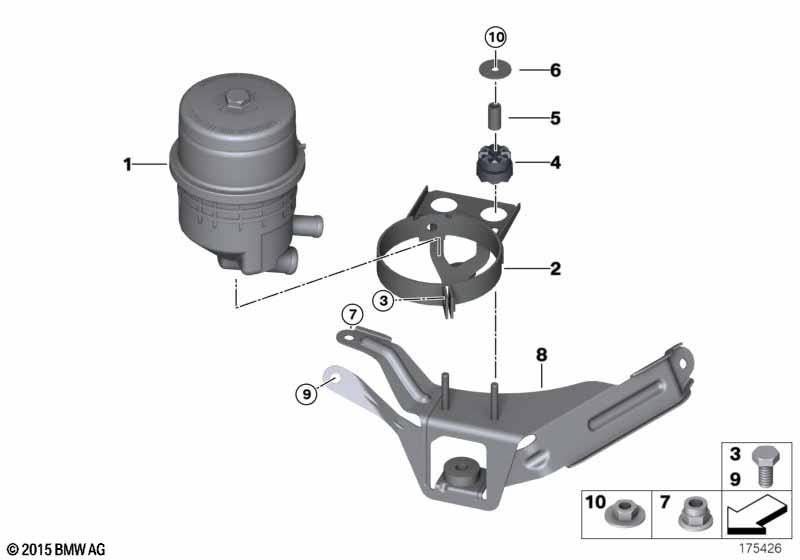

This Oliereservoir/losse delen/Actieve bestur technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 330d. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Voor voertuigen met Actieve besturing |
S217A=Ja |
||||||||
| 01 | Oliehuis | 1 | 32416767161 | $33.48 | Shop at ECS Tuning | |||||
| 02 | Bevestiging oliehuis boven | 1 | 32416768095 | $24.44 | Shop at ECS Tuning | |||||
| 03 | Zeskantige schroef met schijf | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Silent-bloc | 2 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 05 | Afstandsbus | ZNS3 | 2 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| vervallen | ||||||||||
| 06 | Onderzetterplaat | 6,4X25X1,5 | 2 | 04/2008 | 07146977329 | $0.64 | Shop at ECS Tuning | |||
| 07 | Zeskantige moer | M6-8-ZNS3 | 1 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
| 08 | Bevestiging oliehuis actieve besturing | 1 | 32416766844 | Shop at ECS Tuning | ||||||
| 09 | Zeskantige schroef met schijf | M6X14-U1-8.8 | 2 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Zeskantige moer | M6-8-ZNS3 | 2 | 04/2008 | 07119905128 | $0.44 | Shop at ECS Tuning | |||
| 10 | Zeskantige moer met plaat | M6 | 2 | 07147155614 | $0.91 | Shop at ECS Tuning | ||||
