Hydrostuurinricht./olieleid./Act.bestur. for BMW 3 Series E91 330d

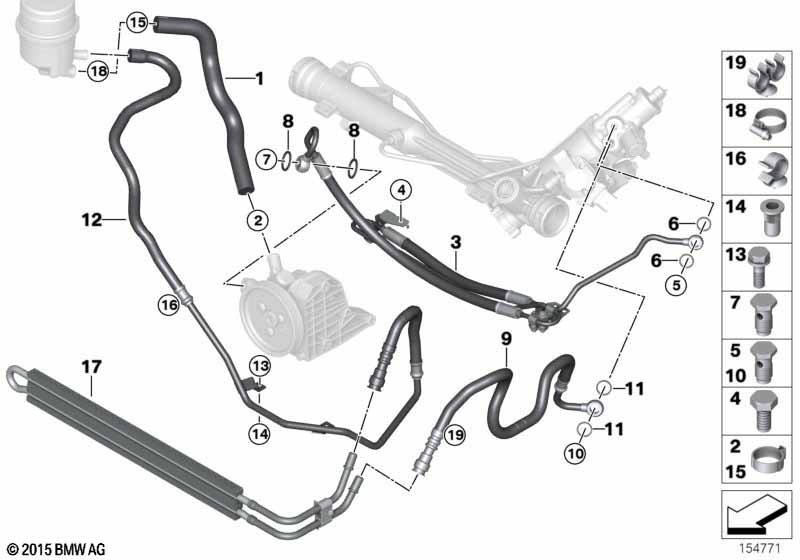

This Hydrostuurinricht./olieleid./Act.bestur. technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 330d. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Voor voertuigen met Actieve besturing |
S217A=Ja |
||||||||
| 01 | Zuigleiding actieve besturing | 1 | 32416764773 | Vervallen, +core | Shop at ECS Tuning | |||||
| 02 | Slangklem | D= 25MM | 1 | 32416763470 | $1.27 | Shop at ECS Tuning | ||||
| 03 | Uitrekbaar slang actieve besturing | 1 | 32416781813 | Shop at ECS Tuning | ||||||
| 04 | Zeskantige Schroef | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Banjobout met terugslagklep | M14X1,5X27,4 | 1 | 32416781261 | $10.02 | Shop at ECS Tuning | ||||
| 06 | Afdichtring | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 07 | Banjobout | M16X28 | 1 | 10/2005 | 32416852470 | Shop at ECS Tuning | ||||
| 07 | Banjobout met aanzetstuk | M16X28 | 1 | 32416781666 | $2.47 | Shop at ECS Tuning | ||||
| 08 | Afdichtring | A16X20-CUSN | 2 | 07119906463 | $0.33 | Shop at ECS Tuning | ||||
| 09 | Retourleiding actieve besturing | 1 | 32416778449 | Shop at ECS Tuning | ||||||
| 10 | Banjobout | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| 11 | Afdichtring | A16X20-CUSN | 2 | 07119906463 | $0.33 | Shop at ECS Tuning | ||||
| 12 | Koelerretourleiding actieve besturing | 1 | 32416781455 | Shop at ECS Tuning | ||||||
| 13 | Zeskantige schroef met schijf | M6X18-U1 | 2 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Popnagel-moer platkop | M6 | 2 | 07146989330 | $1.25 | Shop at ECS Tuning | ||||
| 15 | Slangklem | 1 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 16 | Bijping bevestiging | D=17/D=19 | 1 | 13537792950 | $1.08 | Shop at ECS Tuning | ||||
| 17 | Stuurbekrachtigingslus | 1 | 17117522052 | Shop at ECS Tuning | ||||||
| 18 | Slangklem | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 19 | Slanghouder dubbel | 1 | 64219119951 | $0.78 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
