Hydro-besturing-olieleidings for BMW 5 Series E60 LCI 525xi (2009)

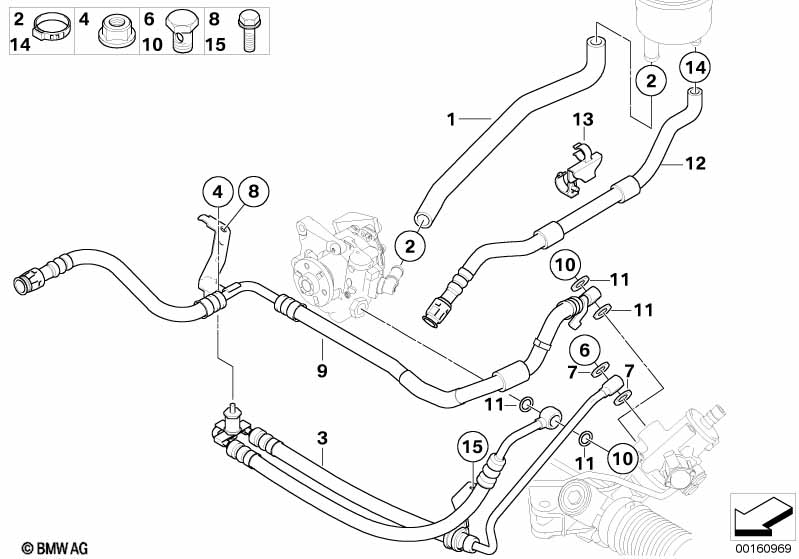

This Hydro-besturing-olieleidings technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zuigleiding | 1 | 32416774187 | Shop at ECS Tuning | ||||||
| 02 | Slangklem | 2 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 03 | Uitrekbaar slang | 1 | 32416780240 | Shop at ECS Tuning | ||||||
| 04 | Zeskantige moer met plaat | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Slanghouder | 1 | 11727511099 | $0.83 | Shop at ECS Tuning | |||||
| 06 | Banjobout met terugslagklep | M14X1,5X27,4 | 1 | 32416781261 | $10.02 | Shop at ECS Tuning | ||||
| 07 | Afdichtring | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 07 | Afdichtring | A14X18-CUSN | 2 | 07119906464 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Zeskantige schroef met schijf | M6X20-U1-ZNS3 | 1 | 07119903849 | $1.05 | Vervallen | Shop at ECS Tuning | |||
| 09 | Retourleiding | 1 | 32416782980 | Shop at ECS Tuning | ||||||
| 10 | Banjobout | M16X28 | 2 | 32416852470 | Shop at ECS Tuning | |||||
| 11 | Afdichtring | A16X22-CUSN | 4 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 12 | Radiatorretourleiding | 1 | 32416782255 | Shop at ECS Tuning | ||||||
| 13 | Steun koelvloeistofleiding | 1 | 17127549717 | $5.77 | Shop at ECS Tuning | |||||
| 14 | Slangklem | 1 | 32416751128 | $0.98 | Shop at ECS Tuning | |||||
| 15 | Zeskantige schroef met schijf | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
