Onderdelen voor veerelement achter for BMW 5 Series E39 528i (1998)

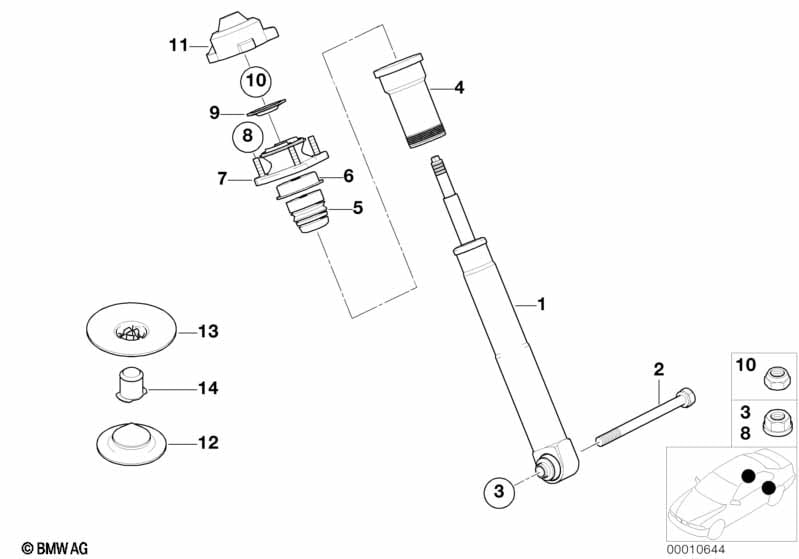

This Onderdelen voor veerelement achter technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Bij het vervangen van de veerpoot is het volgende onderdeel nodig: Extra demper achter |
|||||||||
| 01 | Schokdemper achter | 2 | 33521094052 | $258.00 | Shop at ECS Tuning | |||||
| Voor de reparatie noodzakelijk | ||||||||||
| -- | Zeskantige Schroef | M14X1,5X180 | 2 | 33521093856 | $6.11 | Vervallen | Shop at ECS Tuning | |||
| -- | Zelfborgende zeskantige moer | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| Voor voertuigen met Niveauregelsysteem en Sportonderst.+verlaging+niveaureg. |
S220A=Ja S227A=Ja |
|||||||||
| 01 | Schokdemper achter | 2 | 33521094057 | $283.45 | Vervallen | Shop at ECS Tuning | ||||
| Voor de reparatie noodzakelijk | ||||||||||
| -- | Zeskantige Schroef | M14X1,5X180 | 2 | 33521093856 | $6.11 | Vervallen | Shop at ECS Tuning | |||
| -- | Zelfborgende zeskantige moer | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 02 | Zeskantige Schroef | M14X180 ZNS3 | 2 | 07119909862 | Shop at ECS Tuning | |||||
| 03 | Gecombineerde moer | M14X1,5-10ZNS3 | 2 | 33326760380 | $2.48 | Shop at ECS Tuning | ||||
| 04 | Beschermbuis | 2 | 33521092943 | $5.58 | Shop at ECS Tuning | |||||
| 05 | Extra demper achter | 2 | 33531093924 | $20.55 | Shop at ECS Tuning | |||||
| Voor voertuigen met Sportonderst.+verlaging+niveaureg. |
S227A=Ja |
|||||||||
| 05 | Extra demper achter | 2 | 33531094065 | $20.55 | Shop at ECS Tuning | |||||
| 06 | Steunpot | 2 | 33521093417 | $1.02 | Shop at ECS Tuning | |||||
| 07 | Tussenlager | 2 | 33521093416 | $50.37 | Shop at ECS Tuning | |||||
| 08 | Zelfborgende moer | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 09 | Bord | 2 | 33521093415 | $0.77 | Shop at ECS Tuning | |||||
| 10 | Zelfborgende zeskantige moer | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 11 | Afsluitkapje | 2 | 33521093418 | $3.02 | Shop at ECS Tuning | |||||
| 12 | Onderlaag voor veren beneden | 2 | 33531093785 | $9.75 | Shop at ECS Tuning | |||||
| 13 | Onderlaag voor veren boven | 2 | 33531093786 | $7.08 | Shop at ECS Tuning | |||||
| 14 | Afdekking | 2 | 33531093787 | $0.70 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
