Stabilisator achter for BMW 5 Series E39 528i (1998)
This Stabilisator achter technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stabilisator achter | D=13MM | 1 | 33551092835 | $159.68 | +core | Shop at ECS Tuning | |||
| Voor voertuigen met Sportonderst.+verlaging+niveaureg. |
S227A=Ja |
|||||||||
| 01 | Stabilisator achter | D=14MM | 1 | 33551092834 | $159.68 | Shop at ECS Tuning | ||||
| 02 | Rubberlager stabilisator | D=13MM | 2 | 33551093663 | $8.79 | Shop at ECS Tuning | ||||
| Voor voertuigen met Sportonderst.+verlaging+niveaureg. |
S227A=Ja |
|||||||||
| 02 | Rubberlager stabilisator | D=14MM | 2 | 33551092525 | $8.79 | Shop at ECS Tuning | ||||
| 03 | Bevestiging stabilisator | 2 | 10/1998 | 33551092074 | $1.98 | Shop at ECS Tuning | ||||
| 04 | Zeskantige schroef met schijf | M8X20-8.8 | 2 | 33551092295 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Zelfborgende moer | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||

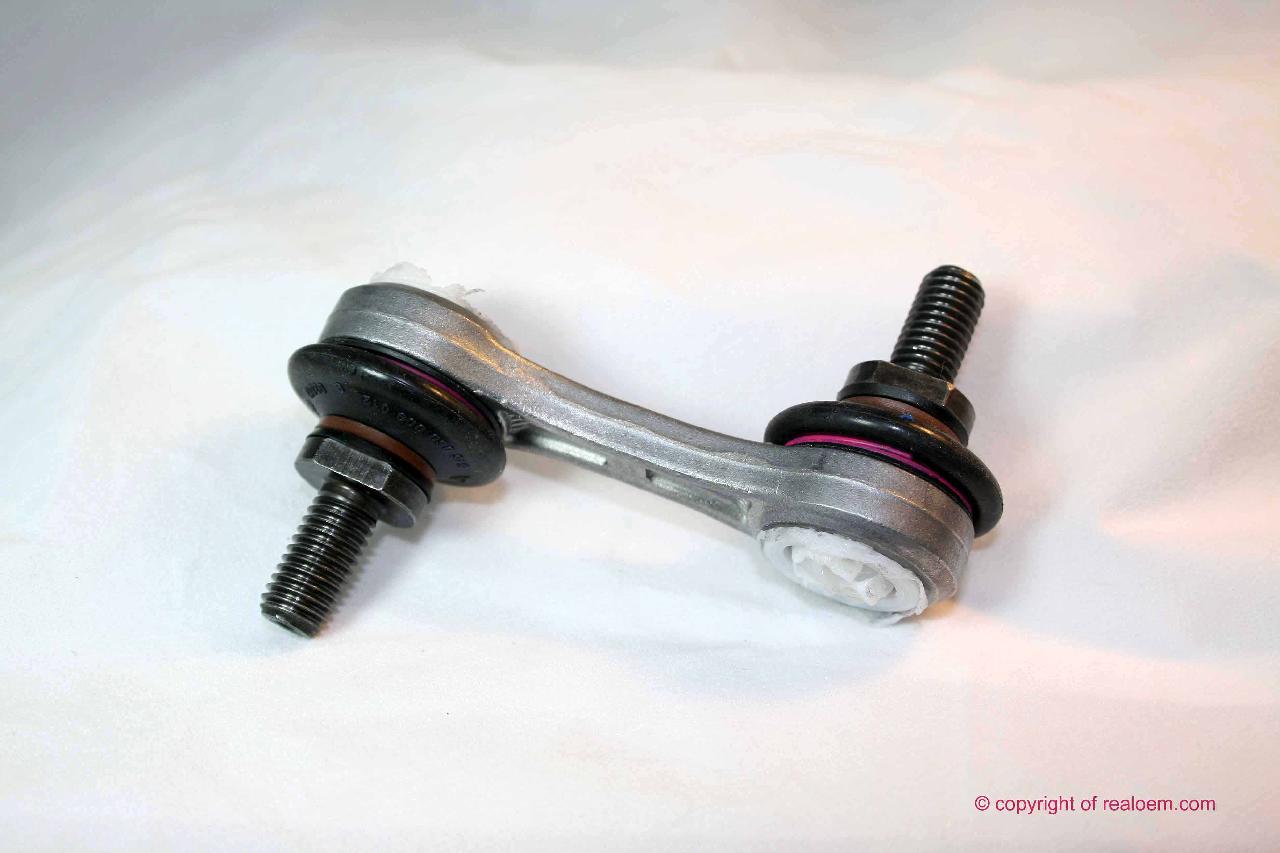

| 06 | Pendelsteun | 2 | 33551095532 | $32.08 | Shop at ECS Tuning | |||||
| Voor de reparatie noodzakelijk | ||||||||||
| -- | Zelfborgende moer | M10-10 ZNS3 | 2 | 33326760376 | $1.52 | Shop at ECS Tuning | ||||
| -- | Zeskantige moer met flens | M10-10 ZNS3 | 2 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
| -- | Ring | D=10MM | 2 | 07119904201 | $1.02 | Shop at ECS Tuning | ||||
| 07 | Zeskantige moer met flens | M10-10 ZNS3 | 2 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
| 08 | Ring | D=10MM | 2 | 07119904201 | $1.02 | Shop at ECS Tuning | ||||
| 09 | Zelfborgende moer | M10-10 ZNS3 | 2 | 33326760376 | $1.52 | Shop at ECS Tuning | ||||
Notities
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
